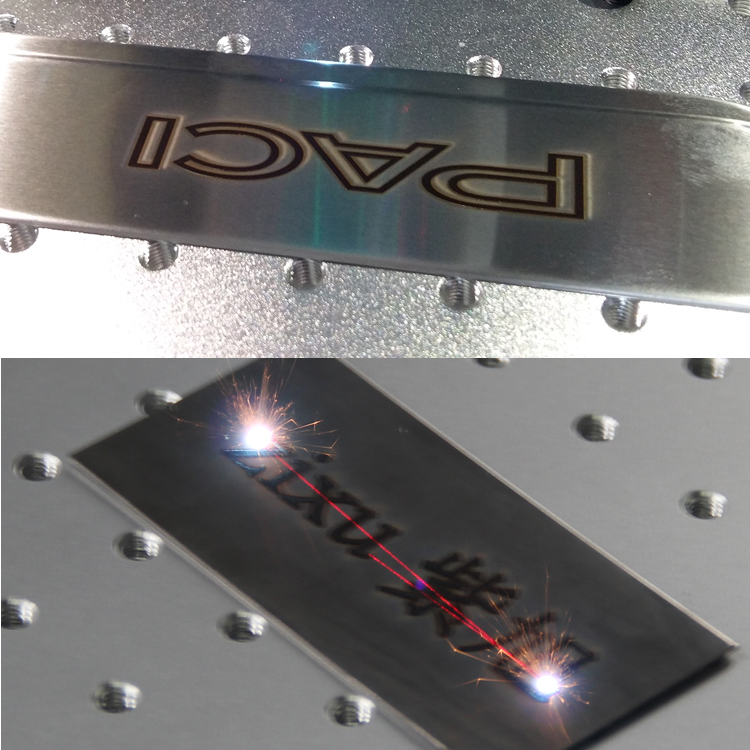

The laser beam with high energy density (it is a concentrated
energy flow), irradiated on the material surface, surface
absorption of laser energy and thermal excitation process in the
illuminated area, so that the surface of the material (or coating),
produce abnormal temperature rise, melting, evaporation, ablation.
Application:
Hardware industry, wrench, measuring tools, sanitary ware,
stainless steel tableware, medical instruments, bags, handbags,
gift industry, there are many, such as metal gifts, wooden box, U
disk, notebook, metal watchcase, watch the instrument industry in
the bottom of the table, spectacle frame, instrument and panel
Laser Marking Machine For Nameplate parameter
| type | Fiber laser marking machine |
| Size | 75*55*83cm |
| Gross Weight | 75kg |
| Laser power | 10/20/30/50 w |
| Laser wavelength | 1064nm |
| Power supply | 220V±10%/50Hz/4A |
| Repeating precision | ±0.002 |
| Repeating frequency | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Marking content | Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
Usage method
The power indicator is not bright
The common fuse is broken, the line contact is bad, the light line
is bad or the light is bad. Check: check the fuse, check the power
supply line, check the indicator circuit. Deal with: replace fuse,
repair wire and change indicator light. "
Product features
No consumables and permanence.
FAQ
The common fuse is broken, or the circuit is open. The inspection
is measured by a multimeter. Handle: replace the fuse, or connect
the circuit.
Design feature
CO2 laser marking machine has faster speed and higher efficiency in
marking
Function
The metal tube has more stable performance, longer life, and a
higher price. Basically, it can be said to be free maintenance.
After service
Free for users to debug and open. The engineer is responsible for
the installation, debugging, opening and testing of the equipment.
Packing and shipping
We supply by air, more fast for shipping.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 75x55x83cm |
| Gross weight | 75KG |
Chuke Factory
Chongqing chuke was founded in 2006, before our staff has many
years of experience in machining, so our company is established in
the initial marking needle production business, with the needs of
customers, our company gradually realize the business expansion to
the technical force so far the company has domestic counterparts in
the forefront custom business, reached a new height, either
pneumatic marking machine or laser marking machine has been
recognized by customers, the marking needle is occupied most of the
domestic market market. Our products have been certified by world -
known quality systems, including ISO, CE, PDA, TUV and so on.
Recently, the company is tackling new technical problems to provide
new services to customers with higher requirements. Our products
are implemented within the warranty period for free repair and
replacement of the shelf life, only charge the cost of fees,
inventory at any time to solve customer as pressing danger to
address customer needs, for the purpose of. No matter where you
are, we can serve you. was founded in 2006, before our staff has
many years of experience in machining, so our company is
established in the initial marking needle production business, with
the needs of customers, our company gradually realize the business
expansion to the technical force so far the company has domestic
counterparts in the forefront custom business, reached a new
height, either pneumatic marking machine or laser marking machine
has been recognized by customers, the marking needle is occupied
most of the domestic market market. Our products have been
certified by world - known quality systems, including ISO, CE, PDA,
TUV and so on. Recently, the company is tackling new technical
problems to provide new services to customers with higher
requirements. Our products are implemented within the warranty
period for free repair and replacement of the shelf life, only
charge the cost of fees, inventory at any time to solve customer as
pressing danger to address customer needs, for the purpose of. No
matter where you are, we can serve you.
