Principle

Burn out some of the material through light energy, and show the patterns, characters, bar codes, and so on.

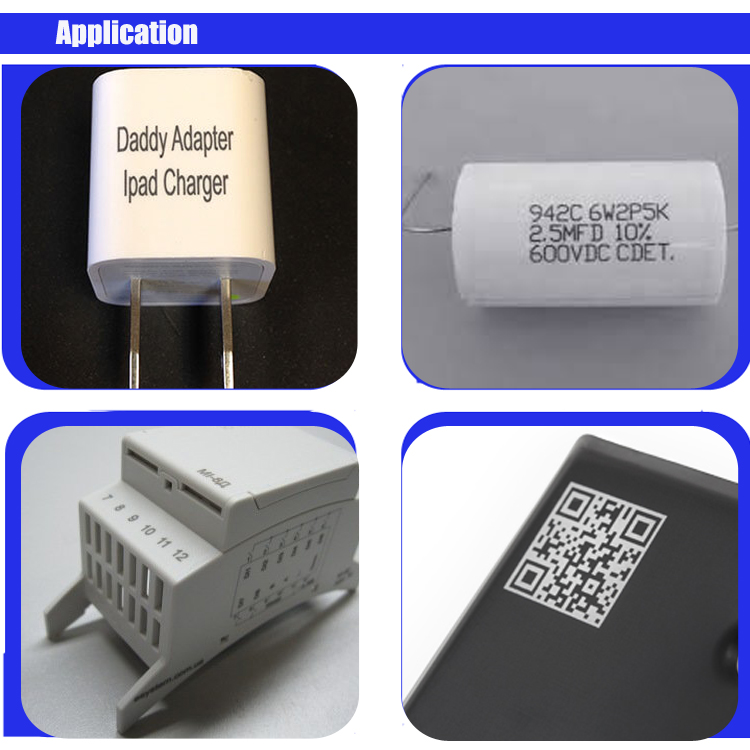

Appliance

Metal Marking Machine samples

The packaging industry and the electronic communications industry of the mobile phone shell, electronic components.

Metal Fiber Laser Marking Machine parameter

Usage method

About avoiding condensation
Prevention of laser crystal and LD cavity surface condensation
The laser system is forbidden to work in a high humidity environment, and the customer should ensure that the ambient humidity is less than 60%. When the temperature difference between the laser crystal and the ambient temperature is too large (greater than 10 degrees), it will lead to the condensation of laser crystals. Condensation will lead to the decrease or damage of the power of the laser system. Therefore, when the ambient temperature is far greater than the set temperature of the water tank (greater than 10 degrees or more), it is strictly prohibited that the laser system is in a single boiled water cooler and the laser head is not working. In this state, the following steps are recommended.
When starting, open the chiller first. When the temperature of the refrigerator is below 30 degrees, start the power and slow the current to about 10A. When the temperature of the cooler is displayed at the working temperature (18 C or so), the current will be adjusted to about 35A.
In the shutdown, the current slows down to about 10A and stops the power output, closes the power supply, and then closes the water cooler as soon as possible. If the work is not done at the maximum current, the cooling temperature of the refrigerator can be adjusted to a higher temperature (but not higher than 25 degrees). We must use laser system equipment in the specified environment (the South operation environment should be equipped with air conditioning).

Product features

Laser processing ,no interaction force between workpiece. It has the advantages of no contact, no cutting force and little heat influence.ensures the original accuracy of workpiece. At the same time, can mark on variety of materials surface very good and be durability

FAQ

What is the laser marking machine without laser output? When this problem arises, we usually exclude the following several steps to solve the problem and let the laser marking equipment return to normal as soon as possible and produce normally.

The first step is to see if it is possible to make a mistake in the laser marking machine. If it is, turn off the machine and try it again.

The second step: a careful observation of what abnormal laser marking equipment has. The abnormal content mainly includes the following: the work of the voice, such as vibration lens voice, voice alarm control box, the sound of the equipment itself, as well as the semiconductor laser marking machine water machine alarm sound; abnormal voltage, simple to use a multimeter to measure voltage, generally low, can also cause no laser; computer software and computer are poisoning, slow boot, and boot parked in an interface for a long time move.

Design feature

Laser's space control and time control are very good. It has great freedom to process object's material, shape, size and processing environment. It is especially suitable for automatic processing and special surface processing. And the processing mode is flexible, which can meet the needs of the single design in the laboratory, and also meet the requirements of the industrial mass production.

After service

High quality and quick technical service he equipment package is guaranteed to meet the requirements of moistureproof, rain proof, antirust, anticorrosion and shock proof, and the identification is clear and unmistakable, so that the articles are safely and promptly shipped to the site.

Packing and shipping

we supply by air, more fast for shipping, Two days to start the installation work, at the same time, our company in accordance with the pre-developed, approved by the user's production plan to ensure follow-up product manufacturing, supply and installation of continuity to ensure timely completion of the production of the tender products And install.
