Cost of Laser Welding Machines for Sale Stainless Steel Metal
Welder Alternative

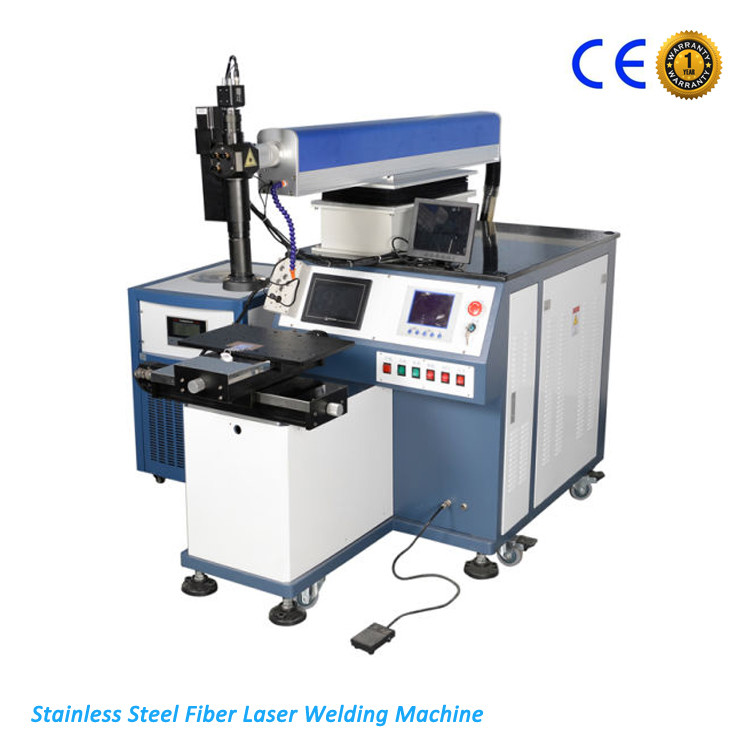

Stainless Steel Metal Laser Welding Machine Description
Stainless steel showers are shower heads and are common in
bathrooms. The general sanitary ware manufacturers use the
traditional welding process, but the high-end shower products are
now gradually adopting the laser welding process.
First of all, the laser welding has little thermal effect, and the
metallographic phase of the product will not be changed after
welding, without blackening, discoloration, deformation, etc.
Phenomenon;
Secondly, laser welding efficiency is high, easy to achieve
automation, welding efficiency can reach 2-5 times of traditional
welding process.
In short, the laser welding quality is good, the sealing is strong,
and the weld seam is silver-white after welding, which can be
simply polished.

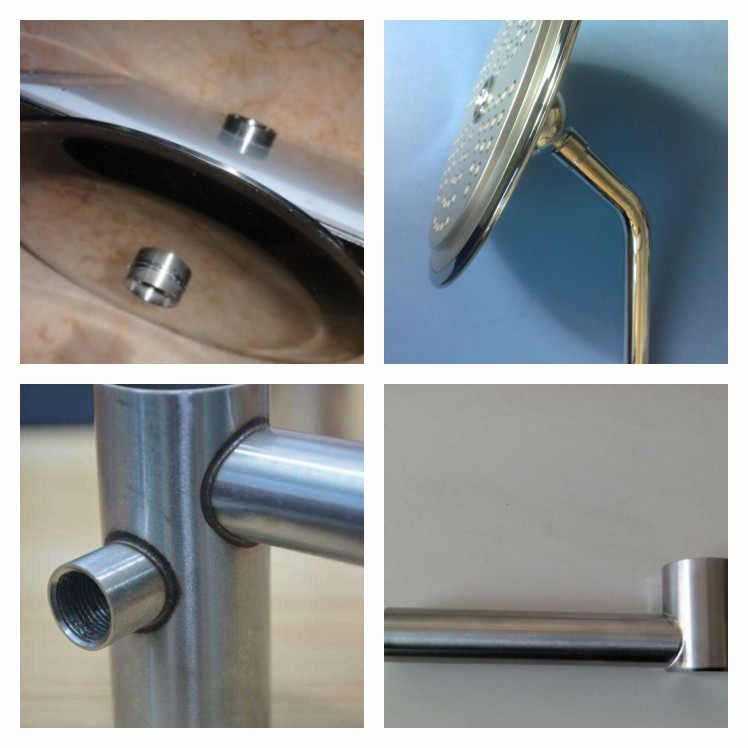

Stainless Steel Metal Laser Welding Machine Application
Bathroom shower laser welding machine can be used for most metal
materials: welding of aluminum, stainless steel, gold, silver,
alloy, steel, diamond equivalent or welding of dissimilar
materials.
Can be welded in plane straight lines, arcs and arbitrary tracks.
Fast welding speed, smooth and beautiful weld seam, no need for
treatment after welding or simple treatment, high weld quality, no
air holes, precise control of positioning accuracy, small focus
spot, so laser marking and laser in high-end bathroom stainless
steel products Welding has a wide range of applications. For
example, handles, faucets, stainless tableware, knives, etc. are
mostly made by laser marking, and high-end electric kettles and the
like are also sealed by laser welding.
Welding of butt welding of kitchen utensils and tableware, welding
of butt welding of instruments, sensors, kitchen supplies and
tableware, repair and modification of molds, mold making and use.
Seamless welding of stainless steel cutlery, welding of instrument
core connection.
Stainless Steel Metal Laser Welding Machine Specification
| Max Laser Power | 400w |
| Max Single Pulse Energy | 200J |
| Laser Wavelength | 1064nm |
| Laser Welding Frequency | ≤100Hz |
| Laser Welding Depth | 0.1~5.5mm |
| Pulse Width | 0.5~20ms |
| Focal Spot Diameter | 0.2-2mm |
| Output Light Path | 1~4 optional |
| Worktable Range | 300*200 optional |
| Positional System | Red light or CCD |
| Power Supply | 380V/60Hz |
| Cooling Type | Water Chiller |
| Worktable Travel | 200x200x200 |
Stainless Steel Metal Laser Welding Machine Features
1. Laser welding can achieve spot welding, butt welding, overlay
welding, sealing welding, etc. for thin-walled materials and
precision parts.
2. The laser power is large, the weld has a high aspect ratio, the
heat affected area is small, the deformation is small, and the
welding speed is fast.
3. The weld quality is high and flat, no porosity, and the
toughness of the material after welding is at least equivalent to
the parent material.
4. Humanized design, LCD display, centralized button operation is
simpler.
5. Four-dimensional ball screw workbench adopts imported servo
control system and optional rotary table. It can realize automatic
welding such as spot welding, straight line welding and
circumferential welding. It has wide application range, high
precision and fast speed.
6. The current waveform can be adjusted arbitrarily, and different
waveforms can be set according to different welding materials, so
that the welding parameters and welding requirements are matched to
achieve the best welding effect.
