0.5Mm Depth Electric Handheld Dot Peen Marking System For Metal
Plate
Working Principle
The electric marking machine adopts the way of electromagnetic
energy instead of the pneumatic high frequency micro impact dot
matrix printing, which saves the gas source in a revolutionary way,
and greatly reduces the printing noise at work. There is no splash
metal dust when printing, and the printing location is accurate and
fast.
Application Range

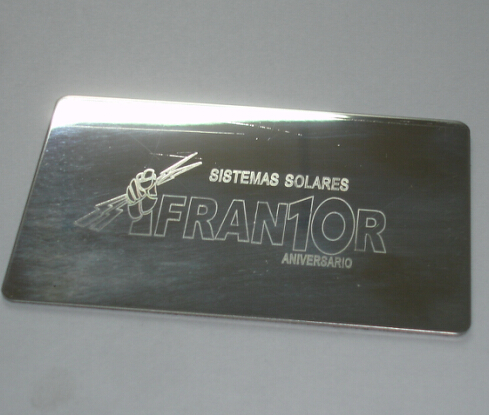

It can be widely applied to automobile bodies, sheet metal parts,
nameplates, etc., which need beautiful appearance, no need of gas
source and low noise work. It is especially suitable for the fine
marking of high-grade products such as aluminum, copper,
electroplating and anodizing parts.
Instructions
First take out the controller, take out the machine, plug the power
line, open the battery iron switch, open the controller, and start
to print.
Product Features
The column structure is extremely suitable for the desktop marking
in the industrial environment. It is an ideal equipment for marking
medium and small parts. From plastic to hardened steel (hardness up
to 62Hrc), it works fast and is an efficient machine with both
stability and precision. Ec9 uses electromagnetic coil to drive the
marking needle to float up and down, and no individual gas source
is needed when marking. The cost of energy consumption and
maintenance is low, and no consumables are used. Reliable column
base and sturdy machine structure, combined with free optional
accessories (rotating shaft or fixture), make EC1 more widely used.
The EC1 software is easy to use and is equipped with an industrial
keyboard cover film and a large color screen. The new software is
reworked, easier to control and more flexible. It provides the
function of simply, quickly creating and editing files, and can be
stored directly in the controller.
| Marking area: | 140X80mm(or customized) |
| Marking speed: | 3-5 characters / second (2X2) |
| Software application system: | LCD touch screen |
| Marking depth: | 0.01-1.2mm Adjustable (depending on the material) |
| Accuracy Assurance: | ≤ 0.01 |
| Height adjustment Range: | 330mm |
| Automatic storage: | can automatically store files and print content, 3L/S |
| analog display: | you can directly observe the marking on the screen |
| Print pin impact frequency: | 300 beats / second |
| Marking content: | Chinese and English characters, numbers, graphics (By marking
software editing) Graphic |
| Editing: | Serial number (serial number) Automatic printing, storage, weight
automatic detection, can identify the bar code |
| Marking material: | all kinds of metal (HRC85 hardness below), all kinds of hard
materials Plastic bakelite, etc.) |
| Power: | 300W |
| Working voltage: | 110VAC / 220VAC |
| Delviery time: | 3-15 working days |
| Type of shipping: | Express,air or sea |
| Terms of payment: | T/T,credit card, |
| package size: | 45X54X90cm |
| Gross weight: | 67KG |
| Warranty time: | one year |
Service Content
1.1 year guarantee,providing free technical support.
2.During the warranty period, Warranty period, the required parts
after the non-human damage free replacement,the freight is borne by
us.
3.Machine has been adjusted before delivery, operation instructions
is included in the delivery. If there is any other questions, pls
kindly tell us.
FAQ
1 electric marking machine print speed and depth can reach how
much? Marking speed is 3-8 characters mm / s, depth can reach
0.01-1mm
2. Reset function how? Reset the number of settings, each marking
without zero-return detection, and can be positive and negative
sequence marking greatly saves time and improve efficiency
3.electric marking machine can mark what content? Chinese and
English characters, two-dimensional code, graphics, special symbols
4.Marking range? Standard range 140 * 80mm, marking range can be
customize.
Design Features
Electric marking machine,a little different from pneumatic marking
machine,belongs to dot peen marking machine.It can be marked
without gas,more convenient compared with the traditional pneumatic
marking machine.
Benchmarking machine or hand-held marking machine has a common
feature of marking, marking depth, marking the general metal
material, the mark can be clearly and permanently stored, in line
with the mark of metal materials.
Factory Introduction
Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd
, conveniently located at the foot of beautiful Mount Jinyun ,the
famous scenic of Beibei ,Chongqing. Founded in 2006, we are
specialized in the research and production of marking machine and
its main spare parts. The production and consumption reaches 10
thousand pieces a year, this makes us being the largest supplier of
marking pin set.
Our success is built on providing innovative solutions to
contemporary marking problems. Now we almost cover all relating
marking products, marking range from metal to nonmetal products, to
cater the diversity marking requirements of customers.
Based on several years of extensive experience in the field of
domestic market, since 2009, our company gained independent import
and export rights and starts to exporting the machine to the
overseas market, and earned an international reputation for our
good quality and service.
Packing And Shipping
Packing in carton case,56*45*90cm The machine gross is 1-75KG, you
can use express delivery. If more than 75KG, you can choose sea
transportation.
After-Sales Service
A: How to install and run the machine?
Our technician have installed the machine before shipping. For some
small parts installation, we will send detail training video,
user’s manual along with the machine. 95% customers can learn by
themselves.
B:How can I do if the machine goes wrong?
If confronted with such problems, please contact us asap and do not
try fix the machine by yourself or someone else. We will response
within 24 hours as quick as we can to solve it for you.
