Application:
It is suitable for marking flat and cylindrical workpieces of
various metal and nonmetal nameplate parts such as steel, copper,
iron, aluminum, alloy and plastic. It is widely used in automobile
and motorcycle parts, machinery, flange, electrical equipment,
Metal pipe and other fields.

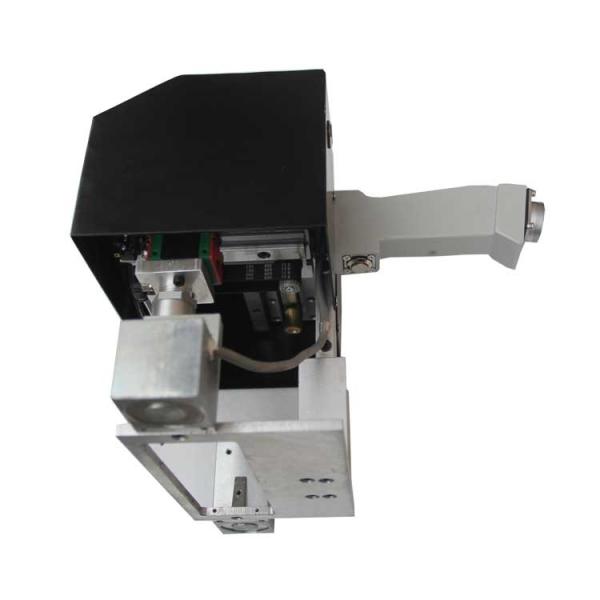

Portable Dot Peen Marking Machine parameter
| model | Pneumatic marking machine |
| weight | 20kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
Control box power indicator light
1, please confirm whether the power supply line of the control box
is connected well.
2. Please confirm that the power switch of the control box is open.
3. Please check whether the fan works on the rear panel of the
control box. If it is not working, check the fuse (2A) on the rear
panel to fuse and replace.
If the work, please open the control box, check the control panel
on the insurance tube (6A) and power fuse replacement;
4. Open the control box after the replacement of the insurance. If
the insurance is still fusing, please check whether the drive in
the control box is damaged. If the damage is found, remove it,
replace the insurance on the control board, open the control box,
and observe whether the insurance is fusing, such as non fusion,
and the replacement of the drive.
Product features
According to the needs of industrial production automatically print
the serial number, serial number, can print international standard
VIN code, bar code and two-dimensional code mark
FAQ
1. How to choose a suitable marking machine?
Identify the product material, general metal pneumatic marking
machine, fiber laser marking machine, individual rigid plastic can
also be used pneumatic marking machine, but to take into account
the thickness of the product. Non-metallic (such as ceramics,
synthetic materials, rubber leather, paper, vernier caliper) CO2
laser marking machine.
Design feature
Pneumatic marking machine marking head place switch using Japanese
OMRON products, high precision, good reliability, our company uses
the most advanced circuit design, and SCM participation control
mode, the printer has a very long continuous working hours, stable
operation reliable
After service
Free training for Machine daily maintnce and cleaning.
Free training for 2-3 people, operation video support
Packing and shipping
Carton pacaking with PE foam inside for courier express.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45*45*55cm |
| Gross weight | 22KG |
