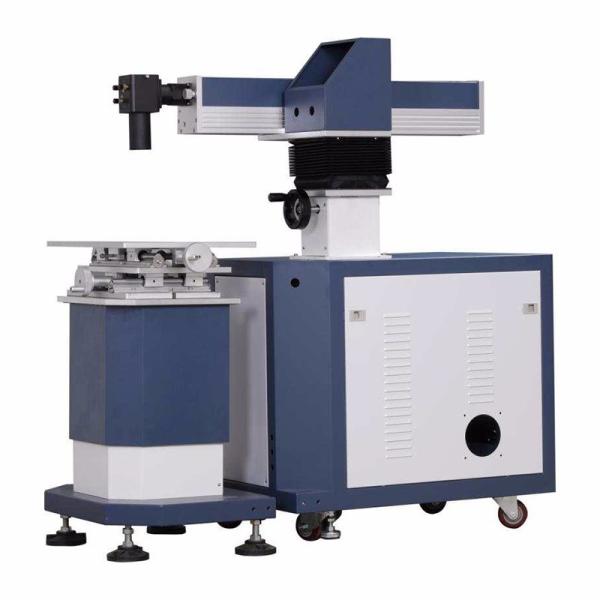

400W Automatic Fiber Laser Transmission Welding Machine Metal
Stainless Jewelry
Automatic Fiber Laser Welding Machine Application
Used in optoelectronic communication devices, medical, electronics,
batteries, polar ear, fiber coupling devices, picture tube electron
guns, metal parts, mobile phone vibration motors, watch precision
parts, automotive steel sheets, optical communication industry,
copper parts, aluminum parts and other precision welding.
Automatic Fiber Laser Welding Machine Advantage
1. The welding spot has a uniform energy distribution and has the
best spot required for welding.
2. Applicable to all kinds of complex welds, welding of various
devices, and welds of thin plates within 5mm.
3. Using imported ceramic concentrating cavity in the UK, it is
resistant to corrosion, high temperature and long life.
4. Flexible and convenient welding, up to 5 meters of fiber,
optional 8 meters of fiber.
5. Optional CCD camera monitoring system for easy observation and
precise positioning.
6. Customized tooling fixtures can be customized to achieve mass
production of products.
Automatic Fiber Laser Welding Machine Specification
| Max Laser Power | 400w |
| Max Single Pulse Energy | 120J |
| Laser Wavelength | 1064nm |
| Laser Welding Frequency | ≤100Hz |
| Laser Welding Depth | 0.1~5.5mm |
| Pulse Width | 0.5~20ms |
| Focal Spot Diameter | 0.2-2mm |
| Output Light Path | 1~4 optional |
| Worktable Range | 300*200 optional |
| Positional System | Red light or CCD |
| Power Supply | 380V/50Hz/60A |
| Cooling Type | Water Chiller |
| Worktable Travel | 200x200x200 |
Automatic Fiber Laser Welding Machine Features
1. Laser welding can achieve spot welding, butt welding, overlay
welding, sealing welding, etc. for thin-walled materials and
precision parts.
2. The laser power is large, the weld has a high aspect ratio, the
heat affected area is small, the deformation is small, and the
welding speed is fast.
3. The weld quality is high and flat, no porosity, and the
toughness of the material after welding is at least equivalent to
the parent material.
4. Humanized design, LCD display, centralized button operation is
simpler.
5. Four-dimensional ball screw workbench adopts imported servo
control system and optional rotary table. It can realize automatic
welding such as spot welding, straight line welding and
circumferential welding. It has wide application range, high
precision and fast speed.
6. The current waveform can be adjusted arbitrarily, and different
waveforms can be set according to different welding materials, so
that the welding parameters and welding requirements are matched to
achieve the best welding effect.
