    CE Stainless Steel Welding Equipment , Kitchen Sink Laser Soldering Machine

    Ask Lasest Price
    Brand Name : Chongqing Chuke
    Model Number : FLWM
    Certification : CE
    Price : USD 6000 ~ 7500 > 2 SETS
    Payment Terms : L/C, T/T, , Paypal, Trade Assurance
    Supply Ability : 50 sets per month
    Delivery Time : 5~ 14 working days
    • Product Details
    • Company Profile

    CE Stainless Steel Welding Equipment , Kitchen Sink Laser Soldering Machine


    Stainless Steel Welding Equipment Kitchen Sink Soldering Machine Price in India


    Kitchen Sink Welding Equipment Description


    Industry stakeholders insist that whether the products of the kitchen appliance manufacturer meet the food safety standards depends mainly on whether the manufacturer chooses the materials to be calibrated.

    Even if it is the same as kitchen supplies, the use criteria are different. The manufacturing process of stainless steel tableware is not cumbersome. After stretching and pressing the sheet, it is necessary to weld, polish and polish it.


    In order to be able to make the kitchen utensils more perfect and meet the aesthetic and individual needs of the consumers nowadays, the traditional welding method is difficult to achieve the desired effect, so a laser welding machine is needed.


    The work of stainless steel laser welding machines is to use high-energy pulsed lasers to achieve welding. Since the heat input during laser welding is extremely low, the amount of deformation after welding is small, and a very beautiful welding surface effect can be obtained, and the subsequent processing of the welding is small, and the labor cost in the huge polishing and leveling process can be greatly reduced or eliminated.


    CE Stainless Steel Welding Equipment , Kitchen Sink Laser Soldering Machine

    Kitchen Sink Welding Equipment Key Feature


    1. High weld quality, no porosity, can reduce and optimize base metal impurities.


    2. The microstructure can be refined after welding, and the weld strength and toughness are equivalent to the mother material.


    3. Precise control, small focus spot, high precision positioning, easy automation.


    4. High depth ratio, small welding width, small heat affected zone, small deformation, fast welding speed; stable equipment performance, can work 24 hours.

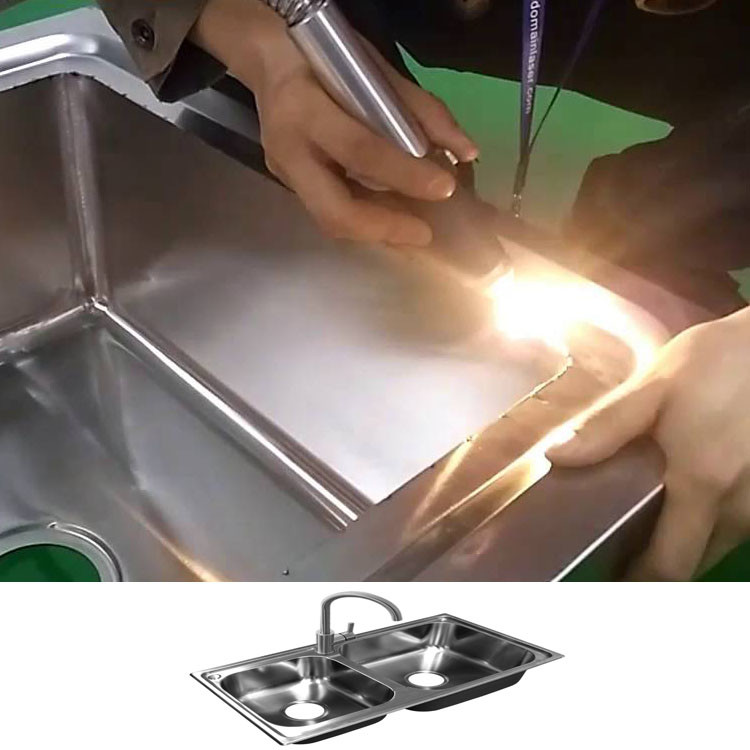

    Kitchen Sink Welding Equipment Sample

    CE Stainless Steel Welding Equipment , Kitchen Sink Laser Soldering Machine


    Kitchen Sink Welding Equipment Specification


    Max Laser Power200W
    Max Single Pulse Energy80J
    Laser Wavelength1064nm
    Laser Welding Frequency≤100Hz
    Laser Welding Depth0.1~2.5mm
    Pulse Width0.1~50ms
    Output Light Path1~4 optional
    Worktable Range300*200 optional
    Positional SystemMicroscope or CCD
    Power Supply380V/50Hz/40A
    Cooling TypeWater Chiller
    Power Consumption≤6KW

    Kitchen Sink Welding Equipment Application


    It is suitable for welding between various metals such as titanium, tantalum, zinc, steel, copper, aluminum, chrome, niobium, gold and other alloys, alloys such as Kovar alloy, and also for welding between dissimilar metals of different materials.


    Such as mobile communication, electronic components, glasses and clocks, jewelry technology, hardware products, precision equipment, medical equipment, auto parts and other industries.
