Portable Welding Kitchen Equipment Kettle Spout Stainless Steel
Welder for sale
Kettle Spout Welding Kitchen Equipment Advantage
1. Specially designed for kettle spout welding, teapot bottom
welding to develop a cost-effective teapot special laser welding
machine. Provide customers with complete spout laser welding
solutions, such as spout positioning fixture, grinding spout
shaping, pot Mouth welding position oxidation protection.
2. The laser numerical control power supply is controlled by
industrial grade high stability single-chip microcomputer. The LCD
screen display and centralized button operation make the operation
simpler. It can realize intelligent control of the working current,
repeated working frequency, pulse width and spot diameter of the
xenon lamp.
3, combined concentrating cavity design, with higher
electro-optical conversion efficiency.
4. Configure the CNC numerical control motion control system. The
visual function of the system configuration can automatically
generate the execution code, complete the programming process for
complex graphic simulation programming, easy to operate and realize
automatic processing.
5, CCD monitoring and positioning programming.
6. The diameter of the solder joint is small, the heat affected
zone is small and has no pores and trachoma. After welding, it can
be directly polished.

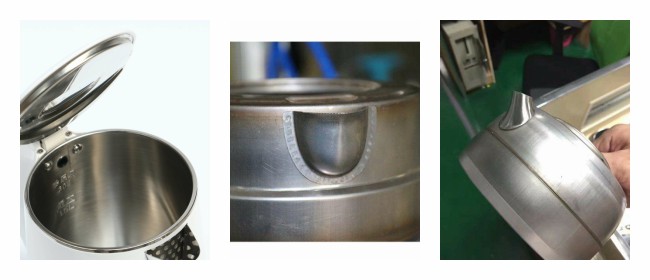

Kettle Spout Welding Kitchen Equipment Sample
Kettle Spout Welding Kitchen Equipment Specification
| Max Laser Power | 500W |
| Max Single Pulse Energy | 120J |
| Laser Wavelength | 1064nm |
| Laser Welding Frequency | ≤100Hz |
| Laser Welding Depth | 0.1~2.5mm |
| Pulse Width | 0.1~50ms |
| Output Light Path | 1~4 optional |
| Worktable Range | 300*200 optional |
| Positional System | Microscope or CCD |
| Power Supply | 380V/50Hz/40A |
| Cooling Type | Water Chiller |
| Power Consumption | ≤6KW |
Kettle Spout Welding Kitchen Equipment Application
Professional for stainless steel kettle mouth welding, teapot
bottom welding, teapot steam tube welding, welding appearance is
beautiful, the weld seam is convex upwards, easy to post-process.
