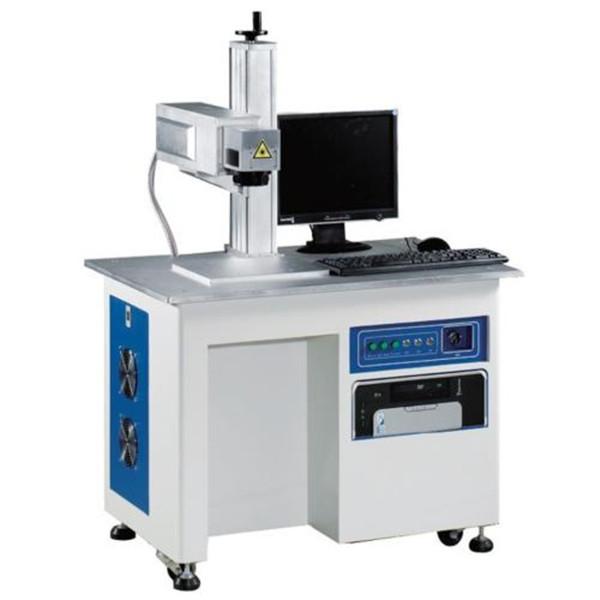

Phone Case UV Laser Marking Machine Horizontal Polarization direction

Ask Lasest Price
Brand Name :	ZIXU
Model Number :	ULMM-A01
Certification :	CE,FDA,ISO
Price :	USD 10000-15000 per set
Payment Terms :	L/C, D/A, D/P, T/T, , MoneyGram,Paypal
Supply Ability :	500 sets per month
Delivery Time :	after payment 7-15 working days

Add to Cart

Product Details
Company Profile

Phone Case UV Laser Marking Machine Horizontal Polarization direction

Big Discount Phone Case Uv Laser Engraving Machine

Product introduction

An ultraviolet laser beam is used to mark a permanent mark on variety of surface

Parameter	Parameter index	Unit	Illustration
Laser wavelength	354.7	nm	/
Average output power	3.0-5.0	W	@30kHz
pulse width	<20	ns	@30kHz
Pulse repetition frequency	10-100	KHz	/
Laser output mode	TEM00	/	/
Beam quality	<1.2	/	/
Spot diameter	0.8+-0.1	mm	Measured at window
Beam divergence angle	<1.2	mrad	/
Beam circularity	>90	/	/
Pulse stability	<3	%	RMS/@30kHz
Power stability	<5	%	RMS/8hr
Beam pointing stability	<30	urad/℃	/
Polarization degree	>100:1	/	/
Polarization direction	Horizontal	/	/
Working temperature and humidity	10to35 <80	℃ %	/
Storage temperature and humidity	-20 to 65 <90	℃ %	/
Power	100-240 50/60<500	VAC Hz W	Single phase
Warranty	15	months	/

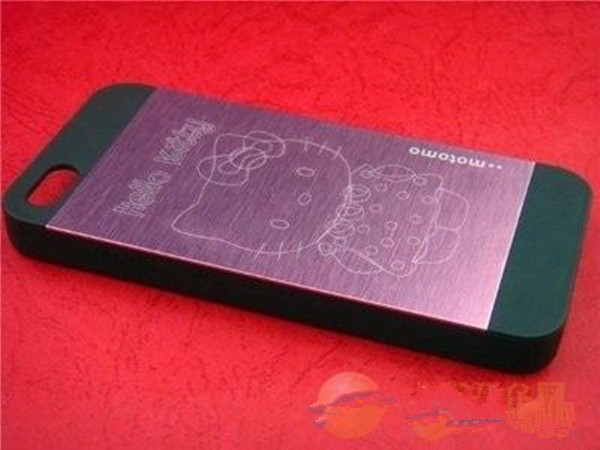

Samples

Application

Silicon wafer; two-dimensional code marking of LCD liquid crystal glass and surface marking of glassware

Usage method
Daily inspection: is there any abnormal sound in the operation of the equipment
No contact with hands or other objects
Installation and shutdown of equipment strictly observe open and shutdown procedures
When the computer is dead or the software does not respond, the vibrating mirror switch is shut down immediately.

Product features

The effect is fine, the marking is clear and firm, better than the ink jet code and no pollution

FAQ

There are dust in the machine in the machine, and the moisture is too high and the air is corrosive. Check: observe the discharge point in the dark. Treatment: remove dust, water and other things, change the working environment.

Design feature

The high energy molecules of ultraviolet photons directly disengage them from the molecules on the metal or nonmetallic materials that need to be processed.

Product features

Such a way of work does not generate heat, because it does not generate heat. Therefore, the way of ultraviolet laser processing has become cold processing, which is also the difference from traditional laser.

Chuke Factory

Chongqing chuke Intelligent Machinery Equipment Co., Ltd. is a famous brand of Chinese marking machine. The purple Xu Machinery Factory is one of the largest marking production bases in China. The company is located in Beibei District of Chongqing, founded in 2006. In addition to the production of pneumatic marking needle, the company also independently developed the laser marking machine, pneumatic marking machine, electric marking machine, and its accessories.
The purple Xu Machinery Factory is a company which integrates technology, industry and trade. The company has more than 60 production and sales personnel, 10 professional and technical workers, the company occupies 3000 square meters, has large production equipment, marking machine design, manufacturing, quality inspection, performance testing has strong technical strength and production capacity.All kinds of professional and technical elites, with the leading technology force of the marking machine, make every marking machine achieve fine, fine and new standard. In the past 10 years, we only do one thing, focusing on the production of marking machine and its accessories. is a famous brand of Chinese marking machine. The purple Xu Machinery Factory is one of the largest marking production bases in China. The company is located in Beibei District of Chongqing, founded in 2006. In addition to the production of pneumatic marking needle, the company also independently developed the laser marking machine, pneumatic marking machine, electric marking machine, and its accessories.
The purple Xu Machinery Factory is a company which integrates technology, industry and trade. The company has more than 60 production and sales personnel, 10 professional and technical workers, the company occupies 3000 square meters, has large production equipment, marking machine design, manufacturing, quality inspection, performance testing has strong technical strength and production capacity.

Packing and shipping

Packing by wooden case, more security delivery with heavier weight and higher freight

Delviery time	7-15 working days
Type of shipping	Express,air or sea
Terms of payment	T/T,credit card,,paypal
package size	95x81x122cm
Gross weight	188KG
