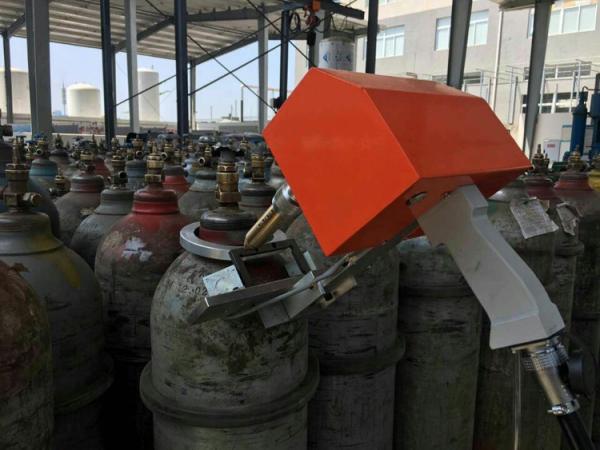

    Peening Technologies Dot Pin Marking Machine For Marking Steel Cylinder

    Peening Technologies Dot Peen Marking Machine For Marking Steel Cylinder


    Principle:


    Under computer control, the marking head drives any movement in the plane through the two-dimensional X, Y-axis worktable, and the needle vibrates with high frequency through the pneumatic system to print a clear mark on the workpiece. Marking machine control system will be sent to the computer control signal sent to the stepper motor or servo motor computer will edit the marking files generated digital signal sent to the marking machine


    Application:

    Instruments, Machinery, Vehicles, Signage, Auto Parts, Motorcycle Parts, Metal Plate Nameplate Lot Number, Date, Trade Mark, Model Number, VIN.
    Portable Dot Peen Marking Machine parameter

    modelPneumatic marking machine
    weight20kg
    Machinpower<300w
    Power supply220v/110v
    Strokefre quency300times/s
    Marking speed2-5 characters(2x2mm)/s
    Marking depth0.01 to 1mm (Vary to the material)
    Standard marking area80x40mm,130x30mm,140x80mm,200x200mm



    Usage method


    1 Press the back panel shown above, the computer system cable, the power connection;
    2 one end of the control cable that is 19-core aviation plug with the back of the electric control box 19 core connector, the other end with the host 19 core connector;
    3 Use Φ8 trachea to connect the pneumatic parts of the marking machine with the air source of the factory;

    4 Start the computer;

    5 Turn on the power of the control box;
    6 according to the instructions of the software manual (or press the software interface prompts) enter the correct print content;

    7 workpiece positioning, marking.


    Product features


    Domestic devaluation USB2.0 high-speed data interface, data transmission faster and more stable, with double column linear bearing structure, no horizontal clearance, more accurate positioning, more freedom, imported linear guide, stepper motor, solenoid valve, wear-resistant , Longer service life.



    FAQ

    Pneumatic marking machine marking depth is how much? 0.01-1mm, depending on the material 2. Pneumatic marking machine contains what accessories? Marking head, controller, solenoid valve, control card, pressure valve, marking needle and so on.

    Design feature


    The appearance of the unique design, comparable with similar foreign machines, circuit design in line with international EMC test standards, the system more stable operation, higher marking accuracy, set aside the PLC interface to accept PC control, more suitable for modern factory automation printing system.


    Function

    Metal marking machines print clear, well-defined marks on a variety of metal components, rigid plastics, and metal plates. The advantage is that the mark can be deep and light, and the marking machine equipped with a dedicated software marking machine marking the contents of the software, whether it is graphics, text, product automatically increment serial number, trademark, production date, working group and Marking icon or two-dimensional identification code, the needle in the workpiece surface by step-driven X, Y movement mechanism, under the control of the computer and the controller by the character and the shape of the trajectory of movement processing and characterization. After marking a permanent logo, editing is very convenient and flexible

    After service

    A: How to install and run the machine?
    Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
    B:How can I do if the machine goes wrong?
    If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.


    Packing and shipping

    Packing in carton case,45*45*55cm The machine gross is 1-75KG, you can use express delivery. If more than 75KG, you can choose sea transportation.

    Delviery time7-15 working days
    Type of shippingExpress,air or sea
    Terms of paymentT/T,credit card,,paypal
    package size45*45*55cm
    Gross weight22KG
