Portable Type Cnc Dot Pin Marking Machine For Chassis Number
Principle
Infrared induction system induction conveyor belt on the auto
parts, pneumatic marking machine in the infrared signal to start
marking, this system is suitable for batch automation marking.
Application:
Auto parts, metal nameplate changes on the parameters.
1, cars, motorcycles and other engines, pistons, body, frame,
chassis, connecting rod, engine, cylinder and other parts number,
name, trademark, date of production marking.
2, electric cars, bicycles, motorcycles and other frame number
marking.
3, a variety of products, vehicles, equipment, product label
marking.
| model | Dot pin marking machine |
| weight | 23kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 130x30mm |
Usage method
Controller maintenance
Equipment due to its long-term exposure to the characteristics of
the air, a long time in the circuit board easy to fouling, long
time not easy to clean the circuit is likely to cause short
circuit. The way to clear is to turn off the power of the
controller, open the cover of the cabinet, and blow the dust inside
with clean air. Usually should also pay more attention to dust
outside the chassis work.
Note: The controls should be placed in a well-ventilated, dry and
dust-free place.
Product features

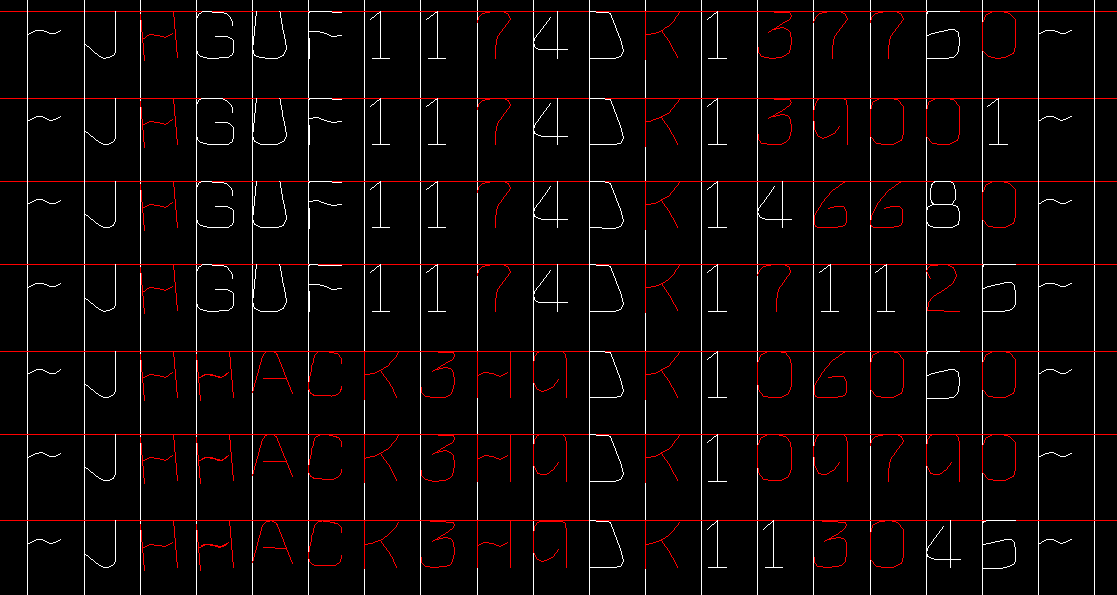

The machine can print a variety of characters, serial number, VIN
code and graphic anti-counterfeit marks, fan-shaped marking and
drop less than 3mm cylindrical marking, but also an external
synchronous rotating fixture for circumferential marking.
FAQ
1 electric marking machine print speed and depth can reach how
much? Print speed is 3-8 characters mm / s, depth can reach
0.01-1mm 2. Reset function how? Set the number of reset function,
each marking without zero-return detection, and can be positive and
negative sequential marking greatly save time and improve
efficiency.
Design features
Standard machine motor using a custom two-phase hybrid stepping
motor, the rotor using the highest quality materials, with high
step accuracy, high speed stability, high torque, so that the
printing effect is very beautiful.
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Packing in carton case, The machine gross is 1-75KG, you can use
express delivery. If more than 75KG, you can choose sea
transportation.
| Delviery time | 7-15 working days |
| Type of shipping | Express or by sea |
| Terms of payment | T/T,credit card,,paypal |
| package size | 45x45x55cm |
| Gross weight | 23kg |
