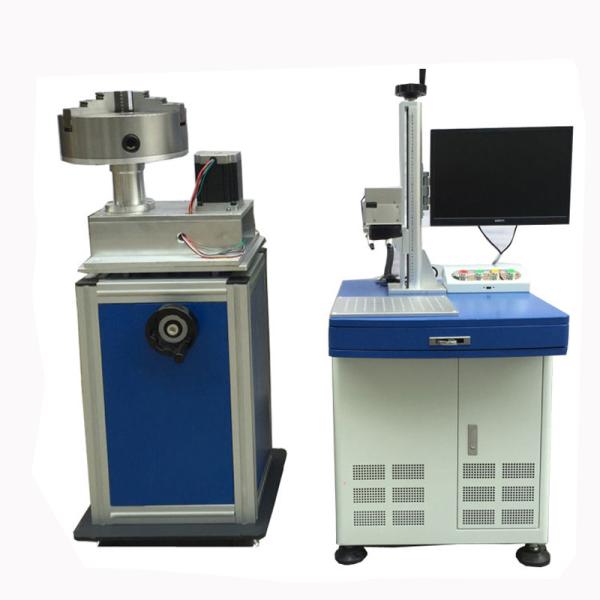

Marking Area 200X200Mm Letter aluminum Laser Engraving Machine
Working principle
Laser is generated by high-intensity emission electron ionization
of rare earth elements to produce a laser beam, laser conduction
through the fiber optic transmission line refers to the laser
galvanometer, galvanometer is like a pendulum needle, the beam in
the X and Y directions, through the laser in the metal Surface to
form a certain pattern of walking.
Fiber laser marking machine parameter
Laser power | 10W/20/30/50W |
| Laser Wavelength | 1064nm |
| Light beam quality | <2 |
| Repeating precision | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Repeating frequency | 20KHz~30KHz |
| Marking content | Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
| Graphic format supported | bmp,png,ai,dxf,dst,plt |
| 220V±10%/50Hz/4A |
| Size | 570mmx270mmx200mm |
| Gross Weight | 135kg |
| Control interface | standard USB port |
| Laser module life | 100000~200000 hours |
Application
Fiber laser marking machine marking sample
The current laser marking machine is mainly used in some
applications require more sophisticated, higher accuracy of the
occasion. Used in electronic components, integrated circuits (IC),
electrical appliances, mobile communications, metal products, tool
accessories, precision instruments, glasses watches and clocks,
jewelry accessories, auto parts, plastic buttons, building
materials, PVC pipe.
Usage method
Marking test and print location
1, on the workbench or production line, place a test piece with the
same height as the marking work piece (it is better to choose the
marked work piece as the test piece), and confirm that the test
piece is indeed stable;
2, through the operation of marking control software for marking. "
Product features
Fiber laser marking machine is different from other marking machine
Fiber laser marking machine core is the use of fiber lasers, which
use a number of small-power air-cooled laser diode as a pump
source, after several branches and then coupled to a single input
The root laser fiber can be pulsed and connected in series by using
rare earth (Nd, Yb, Er) fibers as the laser medium, and reflecting
mirrors and fiber gratings as the resonator. The novel fiber laser
has single mode output, good heat dissipation characteristics, high
power , Compact layout and other characteristics, especially
suitable for high-precision laser marking industry.
Fiber laser marking machine working frequency is generally
10-100KHz high repetition rate operation, 10W-20W average power
output of fiber laser products is very small volume, and no water
cooling system, the volume is greatly reduced. As the laser diode
inside the fiber laser marking machine is a low-voltage operation,
the optical power of the fiber laser marking machine fiber laser is
as high as 70%. The magnitude of the driving power is very small
compared with the lamp Nd-YAG laser. "
.
FAQ
Laser marking laser output power is normal, but the laser beam can
not play the role of marking:
① optical system adjustment is accurate;
② whether the acousto-optic switch can play the role of switch;
③ D / A card control sound and light output signal reaches 5V.
Design feature
Laser marking effect according to the power and marking speed can
vary from silver to light black to black. Want to play a silver
effect, the case of 20W fiber, marking speed should be set to
1000-2000mm / s, marking power is set to 30-60%. As the power
increases and the marking speed decreases, the marking effect will
slowly turn gray and finally to black. If you want to play a black
effect marking speed needs to be adjusted to 100-200mm / s, marking
power needs to be adjusted to 85-95%. Want to know more about other
material marking effects and parameters? Quickly contact purple Xu
machinery! 10 years of supporting the marking industry experience,
we have a wealth of data for you!
Product features
Fiber Laser Marking Machine Advantages: Fiber Laser Marking Machine
is the most advanced laser marking equipment in the world. It has
the characteristics of good beam quality, small size, fast speed,
long working life, flexible and convenient installation, and
maintenance-free.
Packing and shipping
the production department in accordance with the formulation of the
packaging method. 2, materials in accordance with the packaging of
products produced by the Ministry of Production and through quality
control staff to confirm the receipt of qualified labels; ensure
that the product packaging during storage intact. 3, have finished
the processing of the finished product (finished product) out of
the packaging by the quality of the product quality control for the
final judge after the library. 4, product handling
Aftersale service
The main training content is:
Switch machine operation flow
"The meaning of the panel and software control parameters, training
of parameter selection range.
"Machine maintenance and cleaning.
Common hardware troubleshooting.
"Operation should pay attention to matters.
Chuke Factory
Purple Asahi Machinery Factory is the earliest development of
marking one of the high-tech enterprises. Our company is currently
able to produce a full set of marking machine suppliers, "Zixu
card" all kinds of marking machine has a better market visibility,
the main products include: laser marking machine, marking metal
stamping machine, Pneumatic marking machine, portable pneumatic
marking machine, laser code printer, laser inkjet printer, laser
marking machine, laser marking machine, marking machine, marking
machine, marking machine and so on. After years of research and
development, our company has become the leading enterprises in the
domestic marking industry. And a number of domestic and
international companies marking the company marking production
marking machine.
