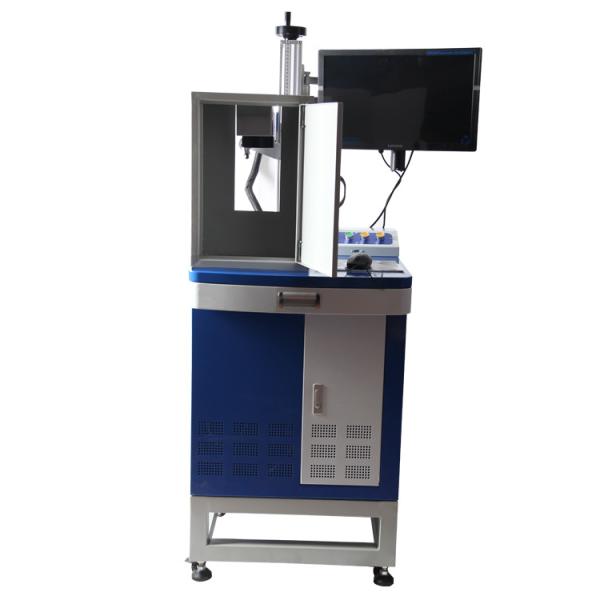

Two Years Guarantee Graphics Low Cost 10W Fiber Laser Marking
Machine For Metal
Working principle
CHUKE desktop fiber laser marking machine, through the electrical
energy into light, the laser beam is excited, through the lens
conduction to the workpiece. The energy transmitted through the
laser changes the material at the focal point, the material on the
surface of the workpiece is excited by energy, the surface material
is heated and sublimated, and the material is removed to form a
mark on the surface.
Fiber laser marking machine parameter
Laser power | 10W/20/30/50W |
| Laser Wavelength | 1064nm |
| Light beam quality | <2 |
| Repeating precision | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Repeating frequency | 20KHz~30KHz |
| Marking content | Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
| Graphic format supported | bmp,png,ai,dxf,dst,plt |
| 220V±10%/50Hz/4A |
| Size | 570mmx270mmx200mm |
| Gross Weight | 135kg |
| Control interface | standard USB port |
| Laser module life | 100000~200000 hours |
Application
Fiber laser marking machine marking sample
Goods traceability, used in different industries: computer
accessories, electronic products and accessories, industrial
bearings, aerospace devices, motorcycle auto parts, jewelry,
watches, food packaging, tobacco, wire and cable, molds, military
equipment, high-volume Production line operation.
Usage method
Connect the laser marking machine equipment lines, respectively,
turn on the main switch, the computer switch, the laser switch and
the red switch. At the same time check whether the equipment is
operating normally, the lens cover is removed at work. Set the
parameters, adjust the parameters by checking the preset, and
create a new text, enter the data. By adjusting the red position,
determine the marking position. Finally, marking, check the marking
is qualified.
Product features
Metals and non-metals can be processed, especially for high
hardness, high melting point, brittle, general mechanical
hard-to-mark products in particular have the advantage. Laser
marking no consumables, high processing efficiency, is the ordinary
mechanical marking speed of several hundred times.
.
FAQ
Fiber laser marking machine service life? Can work 100000 ~ 200000
hours.
Design feature
Fiber laser marking machine, laser equipment through the design and
installation, more suitable for operation and use. Benchtop fiber
laser marking machine, fixed marking position, stable working
system, do not have to spend too much time on parameter and
position adjustment, so that customers have a better experience!
Product features
Fast, high-quality marking, suitable for most of any material
marking. Marking speed, long life, easy to operate, long time
without maintenance. Suitable for large-scale manufacturer
processing, marking is eternal. And compared to the past marking
tools, fiber laser marking technology in speed and accuracy are
even better!
Packing and shipping
Customized wooden boxes, for desktop fiber laser marking machine
for packaging design, reduce the packaging of the goods appear
damaged, very high customer satisfaction. By air, sea, land by way
of transport, a stable logistics company to assist sports goods,
convenient! Major logistics companies: FEDEX, UPS, DHL, TNT
Aftersale service
Free lifetime online service, free replacement of parts during the
warranty period. For long-term cooperation company, we will carry
out on-site training services, free to explain the professor
product knowledge and methods!
