Desktop Red Fiber Laser Marking Machine / Led Bulb Logo Fiber Laser Printer

Fiber Laser Marking Machine Working principle

Laser software control laser beam walking, according to a certain way in the metal marking the numbers and letters. The stronger laser marking the deeper. Common laser marking machine power 10W / 20W / 30W, 50W and so on.

Fiber laser marking machine parameter

Application

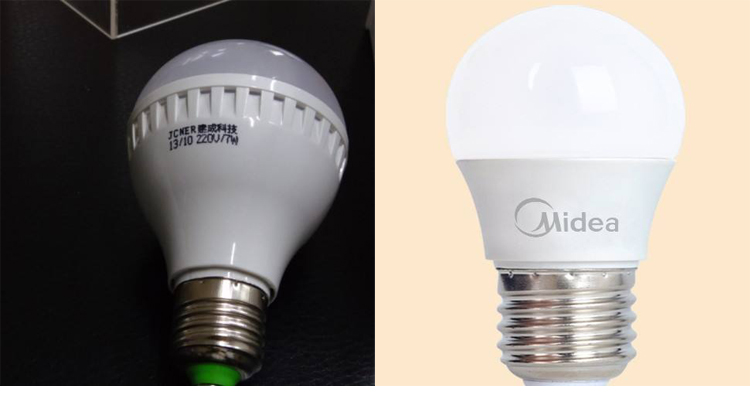

Fiber laser marking machine marking sample

The current laser marking machine is mainly used in some applications require more sophisticated, higher accuracy of the occasion. Used in electronic components, integrated circuits (IC), electrical appliances, mobile communications, metal products, tool accessories, precision instruments, glasses watches and clocks, jewelry accessories, auto parts, plastic buttons, building materials, It is suit for the Led Bulb marking.

Fiber Laser Marking Machine Usage method

Marking test and print location
1, on the workbench or production line, place a test piece with the same height as the marking work piece (it is better to choose the marked work piece as the test piece), and confirm that the test piece is indeed stable;
2, through the operation of marking control software for marking. "

Fiber Laser Marking Machine Product features

"Laser output power: 10W / 20W / 30W / 50W optional
Laser wavelength: 1064nm
Beam quality M2: <1.4
Laser repetition frequency: ≤100kHz
Standard engraving range: 110mm × 110mm
Optional carving range: 70mm × 70mm / 110mm × 110mm / 175mm × 175mm / 220mm × 220mm
Carving depth: ≤ 0.3mm (depending on the material)
Engraving speed: ≤ 8000mm / s
Line width: 0.01mm
Character: 0.2mm
Repeatability: ± 0.001mm
Machine power: ≤ 300W
Power demand: 220V / single phase / 50Hz
Ambient temperature requirements between 5-35 ℃, requiring air conditioning.
Humidity requirements of 40% -80%. No condensation, dehumidifier should be installed. "

.

FAQ

Laser marking laser output power is normal, but the laser beam can not play the role of marking:

① optical system adjustment is accurate;

② whether the acousto-optic switch can play the role of switch;

③ D / A card control sound and light output signal reaches 5V. "

Design feature

Portable fiber laser marking machine integrated modular design, the biggest feature of the device is very small size, can be in the trunk, easy to carry, or even work in a small workshop. Fiber laser marking machine with high speed, high quality, high Cost-effective features.

Product features

Fiber laser marking machine is the most advanced laser marking equipment in the world. It has the characteristics of good beam quality, small size, fast speed, long working life, flexible and convenient installation, and maintenance-free. Fiber laser, the latest in the world, the most reliable structure, small size, small power consumption, high voltage without large water cooling system (only about 300W), high beam quality, close to the ideal beam, USB interface, output control, optical scanning Mirror, high laser repetition rate, high speed without distortion.

Packing and shipping

Packing in wooden case,95*81*122cm The machine gross is 1-188KG, you can use express delivery. If more than 75KG, you can choose sea transportation.

Aftersale service

The main training content is:
Switch machine operation flow
"The meaning of the panel and software control parameters, training of parameter selection range.
"Machine maintenance and cleaning.
Common hardware troubleshooting.
"Operation should pay attention to matters. "
