7000Mm Marking Speed Metal Laser Marker , Fiber Laser Engraving
Machine
Working principle
The lens, which can effectively reduce the size of the detector, is
called a field mirror, working near the focal plane of the
objective lens,It is mainly used in laser marking machine to
homogenization non-uniform illumination on the photosensitive
surface of the detector.This laser marking machine can marking on
home decoration and decoration,some metal parts.
Fiber Laser Engraving Machine parameter
Laser power | 10W/20/30/50W |
| Laser Wavelength | 1064nm |
| Light beam quality | <2 |
| Repeating precision | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Repeating frequency | 20KHz~30KHz |
| Marking content | Graphics, text, bar codes, two-dimensional code,
date, batch number, serial number |
| Graphic format supported | bmp,png,ai,dxf,dst,plt |
| 220V±10%/50Hz/4A |
| Size | 570mmx270mmx200mm |
| Gross Weight | 135kg |
| Control interface | standard USB port |
| Laser module life | 100000~200000 hours
|

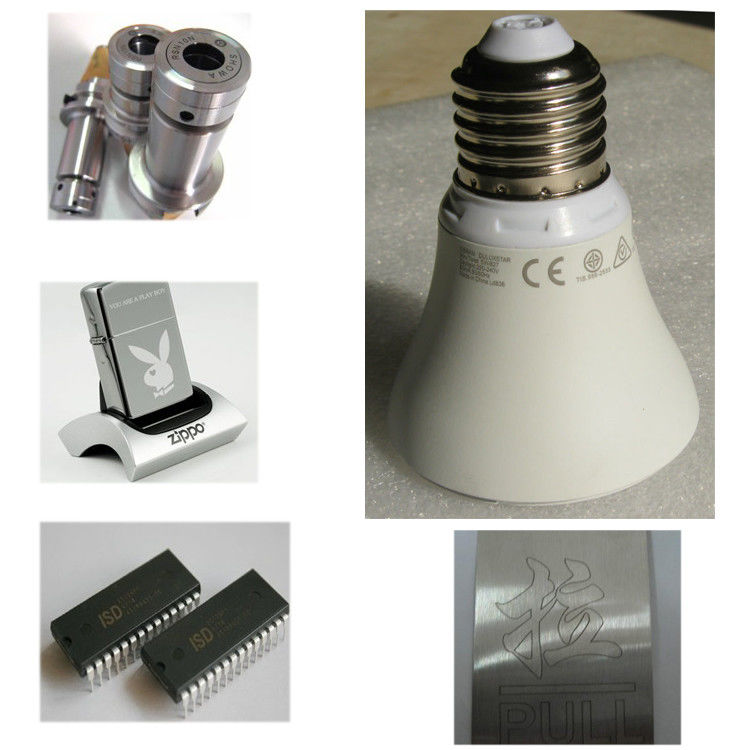

Application
Can be used in faucets, bathrooms, plastic switches, metal doors,
light bulbs, on top of the marking, marking effect is beautiful.
Usage method
Select the appropriate working environment, the fiber laser marking
machine access 110V, 220V constant voltage. By adjusting its
height, marking frequency, scanning speed, marking power, line
filling speed, to achieve accurate marking.
Product features
Beyond the traditional YAG laser, using a Q-switched master
oscillator and a high-power laser amplifier (MOPFA), a periodic
pulse train with a peak power of up to 7KW is generated at a
wavelength of about 1064 nm.The laser marks the pattern is
permanent, cannot change, cannot wipe.
.
FAQ
Fiber laser marking machine service life? Can work 100000 ~ 200000
hours.Engineers patiently explain the use of fiber laser marking
machine, from church customers to teach customers, not only to meet
customer marking requirements, but also to help customers analyze
marking design
Design feature
Fiber laser marking machine, CNC focus, red positioning. By reading
the input information, accurate industrial marking. Optical
protective cover to achieve laser protection, with a solid, stable
features.
Product features
Engineers patiently explain the use of fiber laser marking machine,
from church customers to teach customers, not only to meet customer
marking requirements, but also to help customers analyze marking
design
Packing and shipping
Packing by corrugated board boxes, Light weight, freight is
lower.But the laser marking machine use the wooden case will be
better,because the gross is 133kg.
Aftersale service
laser equipment problems, free replacement at any time, and can
assist in maintenance and repair.
