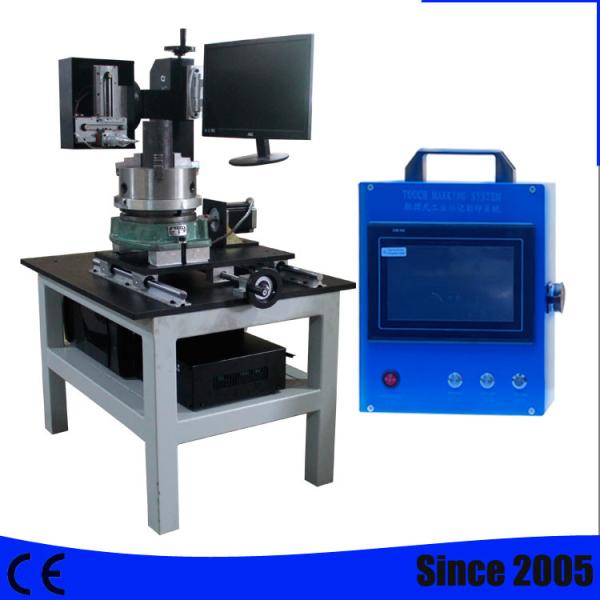

Cnc Metal Flange Marking Machine Dot Peen Metal Flange Engraving
Machine
Product quick detial
1.Pneumatic rotary marking machine is often used for some products
to make the circumferential
surface, so Chuke marking machine company is equipped with a
rotating fixture on the basis of
the pneumatic marking machine. The pneumatic marking machine and
the rotating fixture are
synchronized.
2.The pneumatic rotary marking machine belongs to the standard type
of circumferential surface
marking in the Chuke marking machine. It adopts the standard
printer parallel interface technology
and adopts the vertical lifting head with the circumferential
surface fixture.
3.In addition to the plane function, the marking machine also It is
possible to perform printing on
a circumferential surface or a circular cross section for a
workpiece having a weight of not more
than 10 kg and a clamping diameter of not more than 100 mm.
| Model | Flange Engraving Machine |
| Working Area | 140*80(L*W) | 80*40(L*W) | 120*50(L*W) |
| Marking Speed Range | 10-100words/min(Adjustable) |
| Marking Depth Range | 0.05-1.0mm(According to the materials) |
| Unit power | ≤ 200W |
| Power | 220V/50HZ/10A |
Compressed Air Pressure Required | 0.4-0.8Mpa
|
| System Functions | Character inputting, editing ,marking. VIN code automatically calculating, set, marking. Serial number setting, automatically increasing,marking. Tag data query, reporting, printing. Characters, Graphics, Chinese characters editing. |
| Marked Font Size | Arbitrary Adjustable |
| The Content of Mark Character | 0-9 figures, A-Z large, lower case letters, graphics, characters ( Users can be random homemade) |
| Working Voltage | 220V 50Hz ± 10 % |
| Machine Consume Power | ≤ 200W |
| Working Environment | Temperature: 0-45℃ Humidity: ≤ 80 % |
Product description
Flange pneumatic marking machine is a flange-to-marking machine
designed according to the
requirements of flange marking. This equipment is simple and quick
to operate. It is the preferred
choice for flange marking. Flange pneumatic marking machine price
and customization, more
information is welcome to display information, our company will
provide you with professional
design solutions.
Product advantage
The special pneumatic marking machine for flanges has adjustable
printing direction and is used
for large workpieces. Special fixtures are designed according to
customer needs.
With the marking of the workpiece, the workbench can be customized
to make the equipment
beautiful and beautiful and the factory environment.

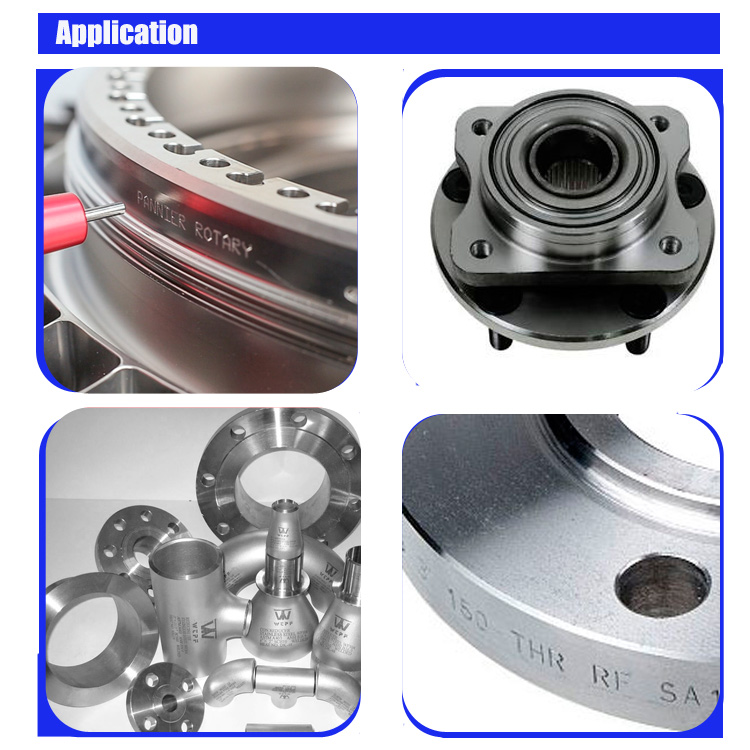

Flange marking machine can print any graphic and Chinese and
English characters on
various materials, edit and adjust the character size, and
automatically print the date and
serial code, VIN code.Communication network can be connected; the
workbench is made of
precision mold casting, 64 subdivision drivers, imported linear
guides and high precision stepper
motors with high reliability.
Type parameters
1, computer system: winXP special system, built-in special
software;
2, marking size: 160*80mm, 150*70mm, 140*70mm, 200*100mm, 140*30mm,
120*30mm;
3, marking the contents: Chinese and English words, figures,
graphics, code, symbols, etc.;
4, marking depth: 0.01-2mm (according to material settings);
5, marking speed: 3-8 words / minute;
6, work power supply: 220V/50HZ;
7, working air pressure: 0.2MPA-0.6MPA;
8, rated power: <300W;
