Stainless Steel Kitchen Faucet Sink Welding Near Me Laser Welder
Brands for Sale

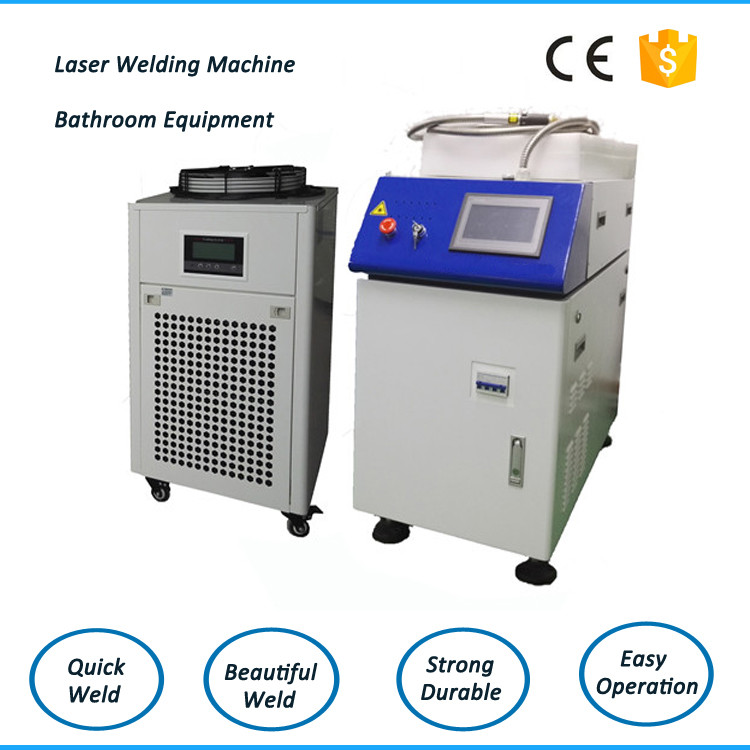

Kitchen Faucet Welding Machine Description
Stainless steel faucet laser welding machine is a high-energy pulse
laser for welding objects.
After the laser power supply discharges the xenon lamp pulse, the
light wave of a certain frequency and pulse width is radiated into
the Nd3+:YAG crystal through the concentrating cavity, and the
crystal illuminates through the resonance to emit a pulse laser of
1064 nm, and then is expanded, reflected, and gathered for welding.
The equipment is equipped with a numerical control operation table
controlled by PLC or industrial PC. The welding process is
performed with high precision welding on laser frequency, pulse
width, worktable speed and moving direction.
Kitchen Faucet Welding Machine Advantage
(1) Concavity and convexity of the accumulating point of the
electric conditioning laser: Through the manual button on the
panel, the convexity and convexity of the laser can be conveniently
and quickly adjusted, so that the focus of the laser is easily and
conveniently.
(2) Soldering point aiming and positioning function: Firstly, the
red light indication can be used to quickly find the general
orientation of the solder joint to be welded on the workpiece to be
welded, and then the binocular high magnification is used to expand
the survey microscope to accurately align the orientation of the
solder joint. This allows the operator to easily and accurately
complete the alignment of the workpiece's welding orientation.
(3) The size of the electric conditioning beam expander is large.
(4) Manually control the movement of the XY mobile workbench,
together with the optional electric CNC active welding function, to
complete the rapid active welding of the goods.
(5) Integration, small size, compact structure, beautiful
appearance, flexible operation and convenience.
Kitchen Faucet Welding Machine Parameter
| Max Laser Power | 200w |
| Max Single Pulse Energy | 80J |
| Laser Wavelength | 1064nm |
| Laser Welding Frequency | ≤100Hz |
| Laser Welding Depth | 0.1~2.5mm |
| Pulse Width | 0.1~50ms |
| Output Light Path | 1~4 optional |
| Worktable Range | 300*200 optional |
| Positional System | Microscope or CCD |
| Power Supply | 380V/50Hz/40A |
| Cooling Type | Water Chiller |
| Power Consumption | ≤6KW |
Kitchen Faucet Welding Machine FAQ
1. Q: Are you a factory or trading company?
A: We are a factory with 13 years' manufacturing experience and 10
years' exporting experience in machinery.
2. Q: How can we know your welding machine works well?
A: We will test and ajust our machines before delivery.
3. Q: How can we know your machine is suitable for our products?
A: We offer free proofing and you can send us sample for checking.
4. Q: How can we pay for?
A: Accept TT, L/C, Paypal, Trade Assurance, Alibaba online payment
available.
5. Q: What certifications will you offer?
A: CE, ISO, FDA etc.
6. Q: Will you train us how to operate machine?
A: Our techinical team will provide online support and operation
training, software will be installed before ex-fty, relieve you of
worries.
7. Q: If machines don't work, how can we do?
A: Offer machine 1 year warranty, we will repair for quality issue.
And our technical engineer will offer 24 hours online support and
check your problem and give solutions. Any problem need to contact
us immediately, please do not disassemble the machine.
