500w Fiber Laser Welding Machine Singapore Flux for Stainless Steel
Vacuum Cup

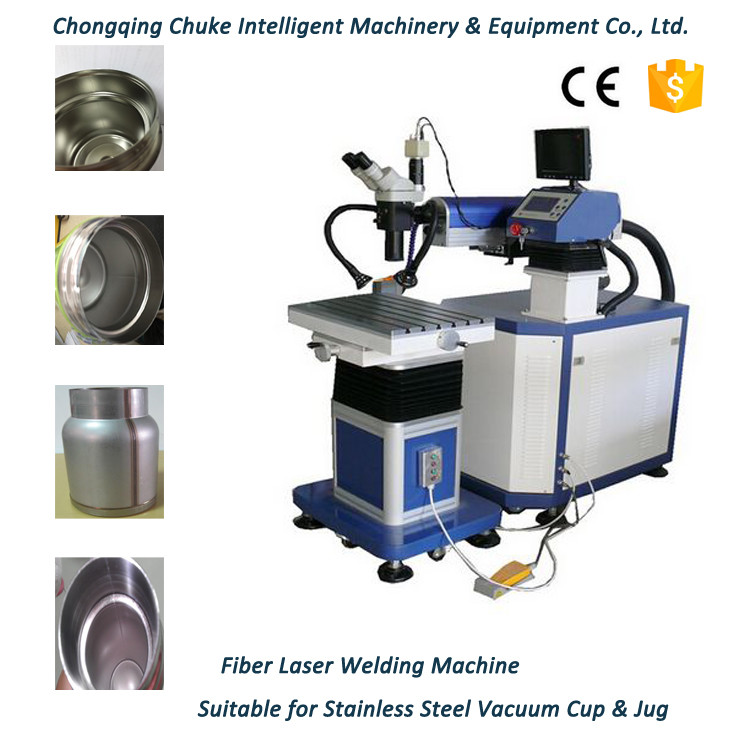

Stainless Steel Cup and Jug Fiber Laser Welding Machine Description
The laser welding machine adopts imported ceramic reflective cavity
and is excited by 12KW double pulse xenon lamp.
Current waveform controllable switching power supply, powerful,
pulse programmable and intelligent system management.
Industrial computer precision control (two axes). The precision X/Y
axis two-dimensional automatic moving platform and the
high-rigidity lifting body can be manually moved up and down to
focus.
Optional rotary table (φ80mm or φ60mm) The monitoring system uses a
CCD monitor. Optional external water cooling chiller.
Stainless Steel Cup and Jug Fiber Laser Welding Machine Feature
1. The welding speed is fast, and it is especially suitable for
laser precision spot welding of various small thin-walled parts.
2. Production efficiency is higher than ordinary laser spot
welding.
3. Both the galvanometer and the laser are directly controlled by
software, providing dedicated laser welding software based on the
Windows XP platform.
4. Solder joints or graphics can be directly entered and edited in
their dedicated software, edited by other software such as AutoCAD,
CorelDRAW, or imported into DWG or PLT files.
5. The machine is stable in quality, easy to operate and easy to
maintain.
Stainless Steel Cup and Jug Fiber Laser Welding Machine Application
Used in offline/online welding of mass production companies in the
electronics, communications, hardware and other industries,
including battery types, mobile phone shields, metal phone cases,
metal capacitor housings, stainless steel kitchen ware like vacuum
cup and jug, computer hard drives, micro motors, sensors, metal
screens, shaving High-efficiency laser spot welding or seal welding
of blades and other types of electronics.
Stainless Steel Cup and Jug Fiber Laser Welding Machine
Specification
| Fiber Laser Wavelength | 1064nm |
| Pump Source | Superior Xenon Lamp, YAG, Imported Ceramic Spotlight Cavity |
| Max Power | 500w optional |
| Max Pulse Energy | 120J |
| Pulse Width | 0.1~50.0ms |
| Continuous Frequency | 1~200Hz |
| Welding Depth | 0.1~2.5mm |
| Welding Spot Size | 0.2~2.0mm |
| Welding Speed | 0~25mm/s |
| Observation System | CCD Monitor |
| Positional System | Red Light |
| Cooling System | Water Cooling |
| Chiller Power | 3P Chiller |
| Power Consumption | <12KW |
| Power Supply | 380V±10%/ 50Hz / 40A three-phase |
Stainless Steel Cup and Jug Fiber Laser Welding Machine Condition
1) The machine is required to be placed at room temperature for
use.
2) Power supply grid requirements: three-phase 380V/ 50Hz.
3) Power grid fluctuation: ± 5%, the grid ground wire meets
international requirements. For areas with a voltage amplitude of
5% or more, electronic automatic voltage regulation and current
stabilization devices should be installed.
4) There should be no strong electromagnetic interference near the
installation equipment. Avoid radio transmitting stations (or relay
stations) around the installation site.
5) Ground amplitude: less than 50um; vibration acceleration: less
than 0.05g. Avoid a lot of machine tools such as stamping in the
vicinity.
6) Equipment space requirements should be smoke-free and dust-free,
avoiding dusty working environments such as metal polishing and
grinding.
7) Anti-static floor should be installed in some environments to
enhance shielding.
8) The water quality of working cooling circulating water is
strictly required. Deionized water or distilled water is required.
Water quality such as tap water or mineral water containing high
metal ions or other minerals may not be used.
