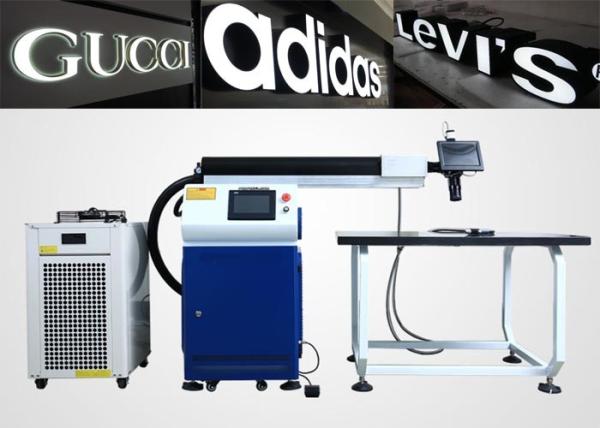

    AD Signs Fiber Laser Welding Machine Single Welding Path Gas For Stainless Steel

    Ask Lasest Price
    Brand Name : CHUKE
    Model Number : AWM
    Certification : CE, ISO, FDA
    Price : USD 5500 ~ 9800/SET
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 40 sets per month
    Delivery Time : 5~14 working days after payment
    • Product Details
    • Company Profile

    AD Signs Fiber Laser Welding Machine Single Welding Path Gas For Stainless Steel


    Laser Welders Near Me AD Signs Single Welding Path Gas for Stainless Steel


    Advantages about AD Signs Stainless Steel Laser Welders


    1. Laser working mode, low cost, no need to add other welding materials.


    2. The welding speed is faster 15 times than the manual operation of traditional argon arc welding.


    3. Laser welding has little influence on the non-welding area which will not change the development characteristics during heating.


    4. Accurate and firm welding, no virtual welding or de-welding, no other welding spots, beautiful appearance.

    5. Welding cost is low, the cost of consumption is almost 1/20 of the traditional.


    6. Can weld 0.2-15 mm thick metal materials, can weld 2 cm-180 cm font structure.

    Description about AD Signs Stainless Steel Laser Welders


    Traditional welding methods include electric welding, gas welding, argon arc welding and so on. However, these welding methods are easy to deform the material, are not good for the material, and the welding effect is not beautiful. And the use of laser welding is different, laser welding machine welding advertising word on the material heat impact is small, will not make the material deformation, and the welding effect is very beautiful.


    AD signs stainless Metal advertising words by solid state laser laser welding machine, touch screen waveform tunable laser power supply, in view of the laser can be three-dimensional moving workbench, welding, laser focusing system of water-cooling system, mainly for thin wall materials, precision parts of welding, high depth ratio and weld width is small, small heat affected zone and deformation is small, fast welding speed.


    AD Signs Fiber Laser Welding Machine Single Welding Path Gas For Stainless Steel


    Parameter about AD Signs Stainless Steel Laser Welders


    Power200watt
    Power Supply220V+10%/50Hz
    Pulse Width0.5-0.25MS
    Pulse Frequency0.1-100Hz
    Laser Wavelength1064nm
    Laser TypePulse ø7*145mm
    Laser Cavity Length117mm
    Spot Size0.2-3.0mm
    Cooling SystemWater Chiller
    Observation SystemCCD/microscope(optional)
    Shielding GasHydrogen(optional)
    Output focal Length80mm/120mm/150mm/200mm
    Worktable Size600*1100mm
    Lifting Sizeworktable=500mm light path=600mm
    Worktable Loading50KGS
    Total Weight150KGS

    Application about AD Signs Stainless Steel Laser Welders


    The metal laser welding machine ad signs stainless steel laser welder near me developed and produced by Chuke with high welding quality and no porosity, which can reduce and optimize the impurities of the base metal, refine the structure after welding, and the welding strength and toughness are at least equal to the base metal.


    Suitable for welding among titanium, nickel, zinc, copper, aluminum, chromium, niobium, gold, silver and other metals and alloys, stainless steel, alloy and other alloy materials, advertising industry including metal words, ad signs, channel letter etc.


    Why Choose Chongqing Chuke


    1. 13 years experience in producing laser marking, engraving, cutting, welding field.


    2. Customer-orientated enterprise and manufacturer.

    3. Wish to provide benefit to agents and customers.


    4. Free proofing and marking solutinons, long-life sales service.


    5. Engineer offers free training and guide online, some area offer door-to-door service.


    6. The best choice of 10000+ customers and enterprises.


    7. Chuke is your best partner for future.


    8. Factory visit available any time.
