high speed Desktop 5w 355 uv laser marking machine for pcb
Product quick detial
1.The ultraviolet laser marking equipment has the characteristics
of laser equipment, and it can realize the online flight marking
function on the pipeline, mainly for thin fragile items, such as
photovoltaic solar glass and so on.
2.UV laser marking machine is a kind of cold processing, so it has
been reduced to the lowest in the fineness and heat effect, which
is a great leap in the laser technology
3.The high energy molecules of ultraviolet photons directly
disengage them from the molecules on the metal or nonmetallic
materials that need to be processed.
4.does not generate heat, because it does not generate heat.
Therefore, the way of ultraviolet laser processing has become cold
processing, which is also the difference from traditional laser.
Product advantage
1.Free tech support, software update
2.In addition to copper material, UV laser is more suitable for
processing. Not only good beam quality, smaller focused spot, the
realization of ultra fine marking;
3.more extensive scope of application; minimal heat affected zone,
will not produce thermal effects, does not produce material
burning; high efficiency;
4.marking speed, stable performance, small volume, low power
consumption advantages.
Product description

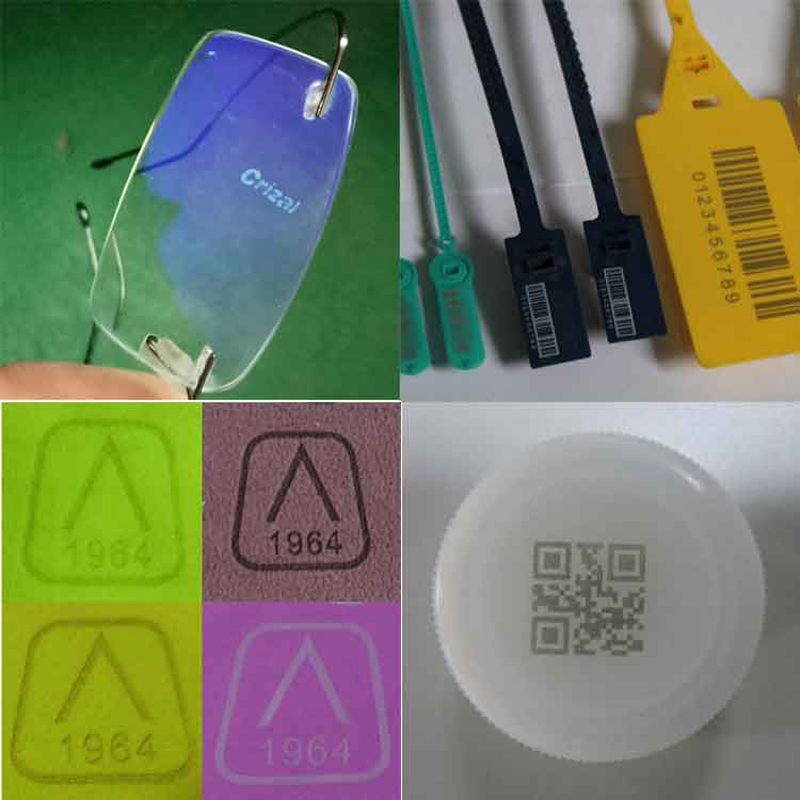

Metal surface coating marking, plastic keys, electronic components,
gifts, communication equipment, building materials and so on.
Parameter
| Parameter | Parameter index | Unit | Illustration |
| Laser wavelength | 354.7 | nm | / |
| Average output power | 3.0-5.0 | W | @30kHz |
| pulse width | <20 | ns | @30kHz |
| Pulse repetition frequency | 10-100 | KHz | / |
| Laser output mode | TEM00 | / | / |
| Beam quality | <1.2 | / | / |
| Spot diameter | 0.8+-0.1 | mm | Measured at window |
| Beam divergence angle | <1.2 | mrad | / |
| Beam circularity | >90 | / | / |
| Pulse stability | <3 | % | RMS/@30kHz |
| Power stability | <5 | % | RMS/8hr |
| Beam pointing stability | <30 | urad/℃ | / |
| Polarization degree | >100:1 | / | / |
| Polarization direction | Horizontal | / | / |
| Working temperature and humidity | 10to35 <80 | ℃ % | / |
| Storage temperature and humidity | -20 to 65 <90 | ℃ % | / |
| Power | 100-240 50/60<500 | VAC Hz W | Single phase |
| Warranty | 15 | months | / |
