Fiber laser (Fiber Laser) refers to the use of rare earth doped
glass fiber as the laser gain medium, the fiber laser can be
developed based on fiber amplifier: the pump under the action of
the fiber easily formed within the high power density, laser energy
caused by "laser material inversion", is added when appropriate the
feedback loop (a resonant cavity) can form the laser oscillation
output.

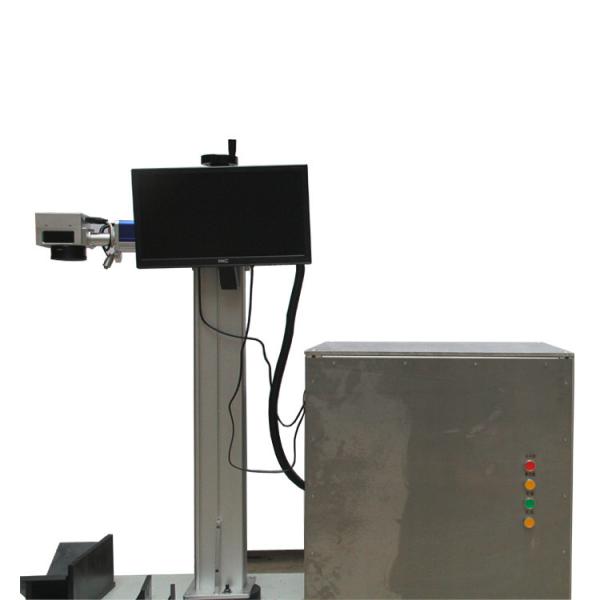

Fiber Laser Marking Machine 20w Application
Application of fiber laser is very extensive, including laser
optical fiber communication, laser spatial distance communication,
industrial shipbuilding, automobile manufacturing, laser engraving
laser marking laser cutting, printing roller, metal drilling /
cutting / welding (brazing, quenching, cladding and welding depth),
the military national defense, medical equipment etc.
Fiber Laser Marking Machine 20w parameter
| type | Metal marking machine |
| Size | 75*55*83cm |
| Gross Weight | 75kg |
| Laser power | 10/20/30/50 w |
| Laser wavelength | 1064nm |
| Power supply | 220V±10%/50Hz/4A |
| Repeating precision | ±0.002 |
| Repeating frequency | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Marking content | Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
Usage method
According to the factory wiring, some suppliers are equipped with a
special power supply, and some are not configured, which requires
an optional power supply according to the galvanometer design
drawings, the installation must be installed horizontally, there
can be no debris in the scanning chamber.
Product features
High electro-optic efficiency: the integrated electro-optical
efficiency is up to 20%. It saves the power consumption and saves
the operation cost. The advantages of miniaturization and
intensification brought by the maturity of technology and the
availability of optical fiber;
FAQ
Laser marking machine in use, small laser marking machine
manufacturers, in addition to daily use and maintenance, but also
to understand some common knowledge, and now introduce the laser a
few common problems:
Symptoms: all the light is not normal, in the high-voltage side,
string into the ammeter, showing the ammeter shows abnormalities,
or have a long time current, or sometimes no, and sometimes not
controlled.
Failure reasons: The main reason is the wrong choice of laser type,
motherboard, patch panel, power supply or control line connection
and cooling water circulation system failure.
Design feature
High electro-optic efficiency: the integrated electro-optical
efficiency is up to 20%. It saves the power consumption and saves
the operation cost. The advantages of miniaturization and
intensification brought by the maturity of technology and the
availability of optical fiber
After service
Adhere to the customer as the center, integrity management, we
adhere to the quality as the fundamental, by service to win,
establish an industry model!
Packing and shipping
The company's products in circulation when the packaging, storage,
handling and transport process of timely and effective monitoring
and management, product packaging to meet the requirements.
Handling, transportation process products are effectively
protected, the entire process under control.
| Delviery time | 7-15 working days |
| Type of shipping | Express,air or sea |
| Terms of payment | T/T,credit card,western union,paypal |
| package size | 95x81x122cm |
| Gross weight | 188KG |
