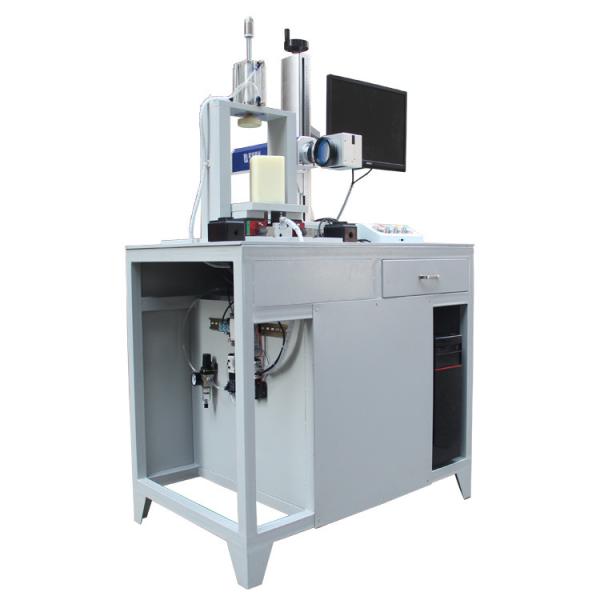

7000Mm/S Marking Speed Laser Marking And Engraving Machine
Working principle
A laser marking machine is a permanent mark on the surface of a
variety of materials with a laser beam. The effect of marking is to
expose the deep material through the evaporation of the surface
material, thereby engraving fine patterns, trademarks and words.
Metal fiber laser marking machine parameter
Laser power | 10W/20/30/50W |
| Laser Wavelength | 1064nm |
| Light beam quality | <2 |
| Repeating precision | ±0.002 |
| Marking range | 110x110mm(customize) |
| Marking depth | 0.01~1mm |
| Marking speed | 7000mm/s |
| Minimum character | 0.15mm |
| Minimum line width | 0.01mm |
| Repeating frequency | 20KHz~30KHz |
| Marking content | Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
| Graphic format supported | bmp,png,ai,dxf,dst,plt |
| 220V±10%/50Hz/4A |
| Size | 570mmx270mmx200mm |
| Gross Weight | 135kg |
| Control interface | standard USB port |
| Laser module life | 100000~200000 hours |
Application
Fiber laser marking machine marking sample
Pipe laser marking machine can cooperate with rotating jig to mark
the pipe above all kinds of dimensions without worrying about the
different diameter of the metal pipe. The laser pipe marking
machine can mark the pipe diameter of 80-200mm in the first moment.
If it is larger than this Tube radius, optional portable laser
marking machine.
Usage method
First, plug in the power of the machine, turn on the computer,
laser, red. Make the machine in a usable state, insert the wire of
the rotating clamp, and clamp the pipe on the rotating clamp. Set
the diameter of the workpiece in the software, select the laser,
input the content that needs to be marked finally, and select the
rotating text to mark it.
Product features
Laser marking machine Marking marks are very clear and will not go
bad marking the surface of the object, the product marked with a
permanent mark to illustrate the ownership of the product maker.
Security can be your best choice.
FAQ
Laser marking machine marking range is how much? Marking range of
100x100mm, 200x200mm, 300x300mm optional
Design feature
Fiber laser marking machine is my company using the world's
advanced laser technology developed from a new generation of laser
marking machine system. Using laser output fiber laser, high-speed
scanning galvanometer system to achieve marking function.
Packing and shipping
Packaging Details
Strong veneer case
Delivery Time
Shipped in 15 days after payment
Aftersale service
1. 24 hours Technical support by Email or Calling .
2. English manual and CD video for machine using and maintaining.
3. Hardware: three years for machine
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
