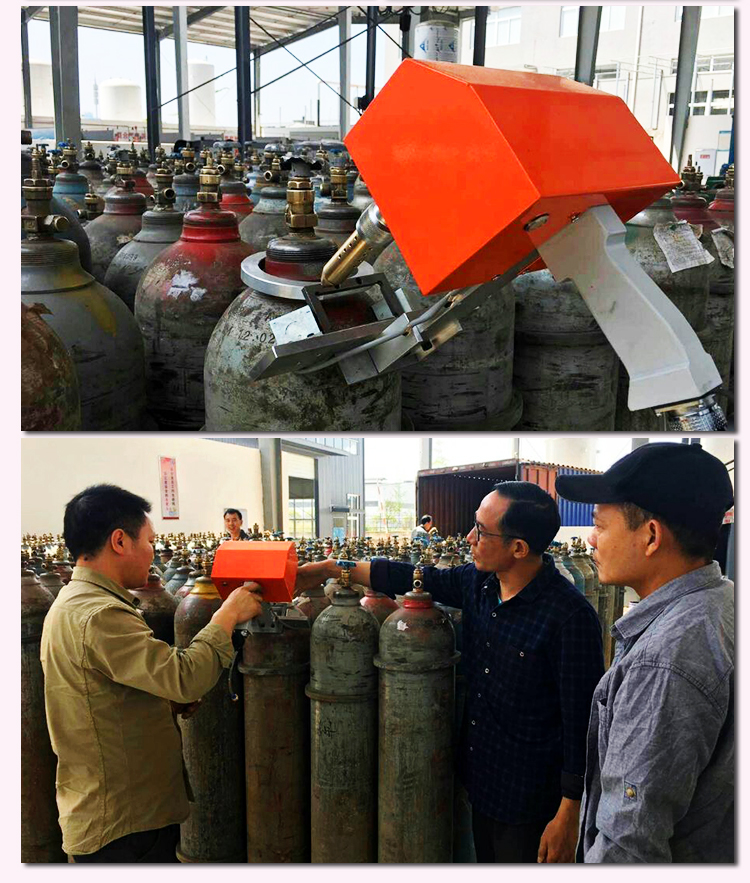

Mini Poprtable Dot Pin Marking Machine For Steel Cylinder
Principle:
To be applied in mechanical part, machine tool, metal pipe, gear,
valve,, hardware part, Aeronautics, Electronics, war and light
industry for marking steel, iron, copper, and aluminum
Application:
Open the controller, set up the mark, carry on the needle operation
on the software, check the needle condition by the software, and
then carry on the marking operation.
| model | Dot pin marking machine |
| weight | 22kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
1 Press the back panel shown above, the computer system cable, the
power connection;
2 one end of the control cable that is 19-core aviation plug with
the back of the electric control box 19 core connector, the other
end with the host 19 core connector;
3 Use Φ8 trachea to connect the pneumatic parts of the marking
machine with the air source of the factory; 4 Start the computer; 5
Turn on the power of the control box;
6 according to the instructions of the software manual (or press
the software interface prompts) enter the correct print content; 7
workpiece positioning, marking.
Product features
Under normal circumstances, the pressure is set to 0.5MPa (general
workpiece) or 0.2-0.3MPa (aluminum or nameplate). In the case of
certain pressure, usually adjust the distance of the print pin to
achieve different depths. You can achieve this by moving the
handwheel up and down to print the mechanism
FAQ
1 electric marking machine print speed and depth can reach how
much? Print speed is 3-8 characters mm / s, depth can reach
0.01-1mm 2. Reset function how? Set the number of reset function,
each marking without zero-return detection, and can be positive and
negative sequential marking greatly save time and improve
efficiency
Design features
Standard machine motor using a custom two-phase hybrid stepping
motor, the rotor using the highest quality materials, with high
step accuracy, high speed stability, high torque, so that the
printing effect is very beautiful
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Packing in carton case, The machine gross is 1-75KG, you can use
express delivery. If more than 75KG, you can choose sea
transportation.
| Delviery time | 7-15 working days |
| Type of shipping | Express or by sea |
| Terms of payment | T/T,credit card,western union,paypal |
| package size | 45x45x55cm |
| Gross weight | 22kg |
