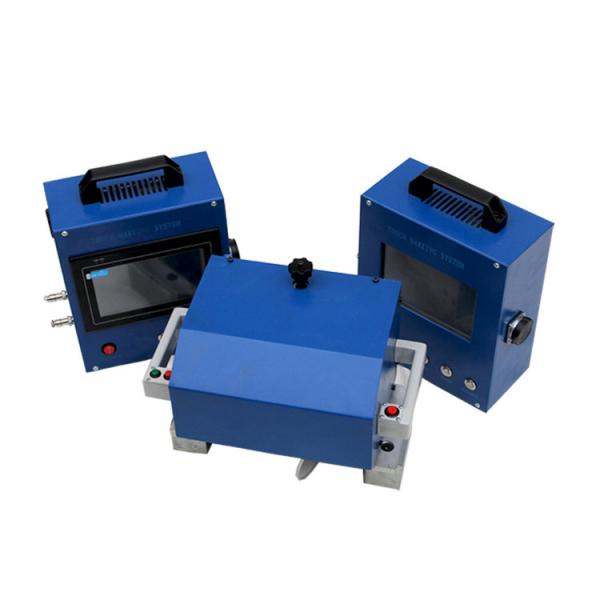

Customized Portable Dot System Handheld Metal Marking Machine
Principle
Print the content into the computer, the computer processed into
data and lost control signal to the controller, the controller
controls the print pin in X-Y two-dimensional plane by a certain
trajectory, while the print pin under the action of compressed air
for high-frequency micro-impact movement, Thus printing beautiful
marks on the workpiece. The printing method is tracing printing
Application:
ainly used in machinery, automobiles, motorcycles, aerospace,
aviation, electronics, instruments, meters and other fields, all
kinds of metal, hard plastic parts of the logo and product
nameplate printing (such as: instruments, meters and mechanical
equipment Nameplate).
| model | Dot pin marking machine |
| weight | 22kg |
| Machinpower | <300w |
| Power supply | 220v/110v |
| Strokefre quency | 300times/s |
| Marking speed | 2-5 characters(2x2mm)/s |
| Marking depth | 0.01 to 1mm (Vary to the material) |
| Standard marking area | 80x40mm,130x30mm,140x80mm,200x200mm |
Usage method
Check the power, cable, trachea connection, after confirmation of
correct power, gas source, according to the software manual editing
marking the contents of the file.
Product features
Under normal circumstances, the pressure is set to 0.5MPa (general
workpiece) or 0.2-0.3MPa (aluminum or nameplate). In the case of
certain pressure, usually adjust the distance of the print pin to
achieve different depths. You can achieve this by moving the
handwheel up and down to print the mechanism
FAQ
1 electric marking machine print speed and depth can reach how
much? Print speed is 3-8 characters mm / s, depth can reach
0.01-1mm 2. Reset function how? Set the number of reset function,
each marking without zero-return detection, and can be positive and
negative sequential marking greatly save time and improve
efficiency
Design features
Standard machine motor using a custom two-phase hybrid stepping
motor, the rotor using the highest quality materials, with high
step accuracy, high speed stability, high torque, so that the
printing effect is very beautiful
After service
1. We sell the whole one year warranty, life-long maintenance;
2. Free installation, debugging my company sold products;
3. Free training for the use of operators, maintenance staff;
4. Free equipment upgrade software;
Packing and shipping
Packing in carton case, The machine gross is 1-75KG, you can use
express delivery. If more than 75KG, you can choose sea
transportation.
| Delviery time | 7-15 working days |
| Type of shipping | Express or by sea |
| Terms of payment | T/T,credit card,western union,paypal |
| package size | 45x45x55cm |
| Gross weight | 22kg |
Chuke Factory
Chuke Machinery Factory was established in 2006, before my company
staff have many years of machining experience, so initially I was
established in the production of marking the needle business, with
the customer's needs, our company has gradually achieved business
expansion , So far the company's technology has been in the
forefront of domestic counterparts, customized business reached a
new level, both pneumatic marking machine or laser marking machine
have been recognized by customers, marking needle is occupied the
vast domestic market Part of the market. Our products have been
certified by world famous quality system, including: ISO, CE, PDA,
TUV and so on. Recently, the company is capturing new technical
problems and providing brand new services to customers with higher
requirements. Our products are completely free within the warranty
period of repair and replacement, the warranty period only charge a
cost, at any time to solve the urgent needs of customers, in order
to solve customer needs for the purpose. No matter where you are,
we can serve you.
