The pneumatic pneumatic printing needle realizes the up and down
movement of the printing needle by compressing the lower pressure
of the compressed
Application
The pneumatic pneumatic printing needle realizes the up and down
movement of the printing needle by compressing the lower pressure
of the compressed air and the reaction force of the spring. With
the use of the pneumatic marking machine, the perfect mark is
produced under the compression of the air.
Usage method
The debugging of the printing needle: the correct installation and
debugging of the print needle can make the typed font beautiful and
the life of the printing needle can be improved.
A: adjust the distance: after printing the needle, the distance
between the needle tip and the printed workpiece should be kept at
a certain distance (the desktop should keep 30cm distance, and the
handheld should keep 20cm distance).
B: connect the connection line between the computer, the
controller, and the print head. Open the computer in the print
program
Product features
Coating alloy needle core
On the basis of the imported alloy, the needle tip is coated and
hardened, which increases the wear resistance, greatly prolongs the
service life of the needle core, and saves the marking cost in the
long run.
Even high hardness steel, such as hardened steel, can be perfect in
marking.

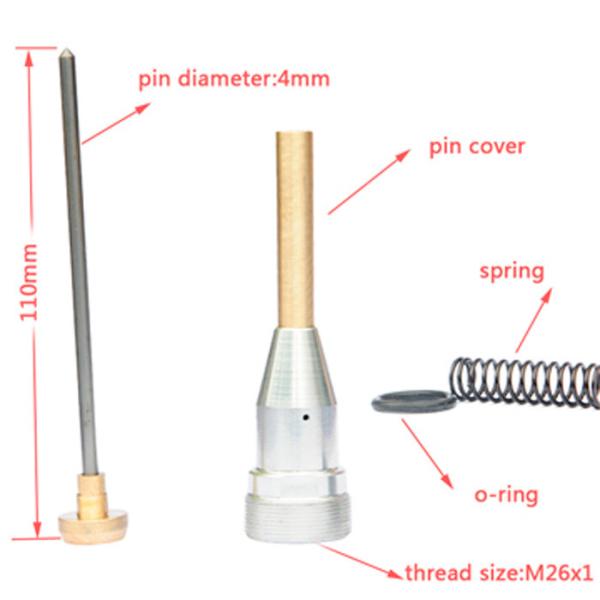

| type | marking needle |
| Size | 4mm |
| length | 110mm |
| Type | pneumatic marking needle |
FAQ
When the pneumatic marking machine is working normally, the walking
track is normal, but the needle or the amplitude is not out, the
cause analysis and the method of displacement are:
Reason:
(1) the increase in friction between the printing needle and the
needle sleeve may be due to the blockage between the needle and the
needle sleeve, such as the aluminum scraps and iron chips when
printing, or the needle and needle sleeves are too dry.
(2) the compressed air out of the air compressor has oil, through
the air road to the needle sleeve of the O ring.
Terms of settlement:
(1) without unloading the needle sleeve, with a needle rod ordinary
sewing machine oil can be directly coated on the outside; or if
not, it may be a set of internal needle dirt stuck, as long as the
removal of the needle by gas blowing in ladle clean or clean.
Generally, the possibility of the latter is very small, as long as
it takes first steps.
(2) regularly released in oil-water separator, and rotating the
needle sleeve, clean the oil on the O ring.
The air road is not through.
Function
The standard needle housing has the color of the aluminum shell of
the present color , the color of the shell is white , the color is
no other color is beautiful , but is very environment - friendly
After service
Training how to install the machine marking needle on the machine
Packing and shipping
Packaging material: carton case with foam inside.
Shipping: 3-5 workdays shipping from China by
Air/Express(DHL,FedEx,UPS,EMS etc.)
| Delviery time | 1-3 working days |
| Type of shipping | Express |
| Terms of payment | T/T,credit card,western union,paypal |
| package size | 20x20x10cm |
| Gross weight | 0.5KG/5 piece |
Chuke Factory
Chongqing Chuke Intelligent Machinery &Equipment Co.,Ltd
, conveniently located at the foot of beautiful Mount Jinyun ,the
famous scenic of Beibei ,Chongqing. Founded in 2006, we are
specialized in the research and production of marking machine and
its main spare parts. The production and consumption reaches 10
thousand pieces a year, this makes us being the largest supplier of
marking pin set.Main product
Laser marking machine, laser cutting machine, laser welding
machine, electric marking machine, pneumatic marking machine,
pneumatic tapping machine, electric corrosion marking machine,
manual embossing machine .
We are innovators. We are problem solvers. We are committed to
designing and manufacturing the highest-quality marking systems Our
experienced engineering team develops customized marking solutions
meet a variety of marking needs.
