Principle

Laser marking is based on the interaction between the focused beam output from the laser and the target object, so as to form high quality markers on the target object. The schematic diagram of a typical laser marking machine is given. The beam output from the laser is controlled by two mirrors mounted on a high speed precision motor to achieve the beam's motion marking. Each mirror moves along a single axis. The motion of the motor is very fast, and the inertia is very small, so that the target can be marked. The beam guided by the mirror is focused by the F- theta lens and the focus is on the marked plane. When the focused beam interacts with the labeled object, the object is "marked". The other surfaces of the object remain unchanged except for the position of the marking

Application:

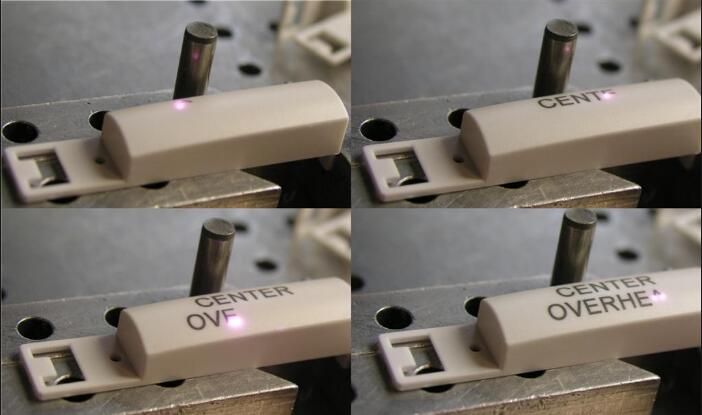

laser marking machines handle nearly every industrial marking and DPM (Direct Part Marking) task. Metals, plastics, etc. are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably: 2D and alphanumeric codes, simple serial numbers, complex logos, graphics, structures. Depending on the material and application task, the process is laser marking, engraving or deep engraving

Parameter

Usage method

Before using the laser marking machine, we must first understand their structure, then use the machine to turn on and turn off the machine. The order is also not disorderly. First, turn on the power, then open the dust-proof cover of the laser, and then turn off the dust-proof hood when he uses it, and turn off the power.

Product features

The optical fiber laser marking machine has the characteristics of high marking precision, no need to contact the surface of the processed articles, the marking is durable and not easy to rub, the processing efficiency is high, and it also has the characteristics of anti-counterfeiting and so on. And its unique processing form is now to provide more creative processing. These characteristics are traditional screen printing and inkjet printer can not achieve. Mini laser marking, ultra-small volume, ultra-light weight, easy to carry. It's your choice.

FAQ

Please confirm or give your comments if bellows parts included or not in the complete set of laser machine:
1) Computer system unit with a monitor (specify the computer settings)
We can use the laptop.Or you need the desktop computer?The desktop computer have the
Monitor.
2)Laser control unit
The machine is 20w Raycus laser source
3)Power supply
Have power supply
4)Laser head
Have the laser head
5)Control panel
JCZ card
6)Desktop with a level
Yes.It is have
7)Working lifting and lowering platform
It is have

8)Port for rotary device

Packing and shipping

How long is the delivery time?
For the fiber laser marking machine, the delivery time will be 3-5 days .The normal package is wooden box(Size: L*W*H),It also changes from the size of machine ,We can delivery the machine by express,air or by sea

After service

We will send you the English manual and CD video for machine using and maintaining with machine.
If you still have some doubts, we can talk by telephone or skype.
Our engineer can also be sent to your country to install or adjust machine if necessary.
